This circulator offers a wide working temperature range of -36.4 to 392°F (-38 to 200°C) and an RS232 connection. The pressure pump provides infinite adjustments.
This circulator offers a wide working temperature range of -36.4 to 392°F (-38 to 200°C) and an RS232 connection. The pressure pump provides infinite adjustments.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

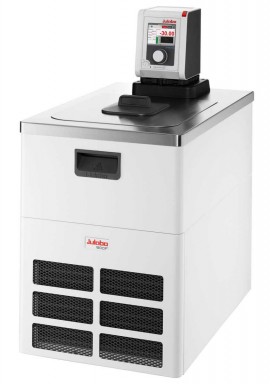

Control the temperature of your internal or external applications with this Julabo DD-900F RS232 DYNEO Refrigerated/Heating Circulator with RS232, which features a wide working temperature range of -36.4 to 392°F (-38 to 200°C). The circulator is equipped with Pt100, USB and RS232 connections.
Features
| Working Temperature Range | -36.4 to 392°F (-38 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.11/0.31/0.52/0.8/0.85/0.9 kW (-30/-20/-10/0/10/20°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, RS232 |
| Material | Bath Tank: stainless steel |
| Bath Opening | 13.8 x 10.2" (35.05 x 25.91 cm) |
| Bath Depth | 7.9" (20.07 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 21 to 30 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 24.4" (61.98 cm) |
| Product Width | 15.4" (39.12 cm) |
| Product Height | 29.5" (74.93 cm) |
| Product Weight | 114 lbs (51.71 kg) |
