This circulator offers a wide working temperature range of -36.4 to 392°F (-38 to 200°C) and an RS232 connection. The pressure pump provides infinite adjustments.
This circulator offers a wide working temperature range of -36.4 to 392°F (-38 to 200°C) and an RS232 connection. The pressure pump provides infinite adjustments.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.

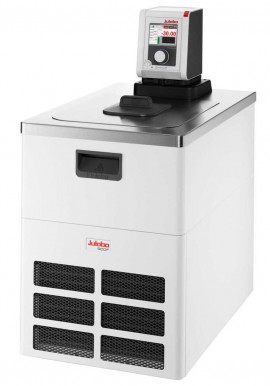

Control the temperature of your internal or external applications with this Julabo DD-900F RS232 DYNEO Refrigerated/Heating Circulator with RS232, which features a wide working temperature range of -36.4 to 392°F (-38 to 200°C). The circulator is equipped with Pt100, USB and RS232 connections.
Features
| Working Temperature Range | -36.4 to 392°F (-38 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.11/0.31/0.52/0.8/0.85/0.9 kW (-30/-20/-10/0/10/20°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, RS232 |
| Material | Bath Tank: stainless steel |
| Bath Opening | 13.8 x 10.2" (35.05 x 25.91 cm) |
| Bath Depth | 7.9" (20.07 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 21 to 30 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 24.4" (61.98 cm) |
| Product Width | 15.4" (39.12 cm) |
| Product Height | 29.5" (74.93 cm) |
| Product Weight | 114 lbs (51.71 kg) |
| Working Temperature Range | -36.4 to 392°F (-38 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.11/0.31/0.52/0.8/0.85/0.9 kW (-30/-20/-10/0/10/20°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, RS232 |
| Material | Bath Tank: stainless steel |
| Bath Opening | 13.8 x 10.2" (35.05 x 25.91 cm) |
| Bath Depth | 7.9" (20.07 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 21 to 30 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 24.4" (61.98 cm) |
| Product Width | 15.4" (39.12 cm) |
| Product Height | 29.5" (74.93 cm) |
| Product Weight | 114 lbs (51.71 kg) |
