With this circulator, you can control the temperature of your internal or external applications. The circulator offers a wide working temperature range from -31 to 392°F (-35 to 200°C).
With this circulator, you can control the temperature of your internal or external applications. The circulator offers a wide working temperature range from -31 to 392°F (-35 to 200°C).
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

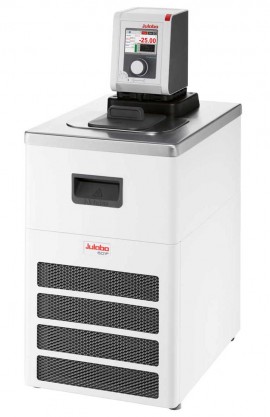

Equipped with USB, RS232 and Pt100 connections, this Julabo DD-601F RS232 DYNEO Refrigerated/Heating Circulator with RS232 provides simple setup. The 3.5" (8.89 cm) color display and central rotary knob make it easy to operate the unit, while the wide working temperature range of -31 to 392°F (-35 to 200°C) is great for your internal or external applications.
Features
| Working Temperature Range | -31 to 392°F (-35 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.07/0.19/0.33/0.5/0.54/0.6 kW (-30/-20/-10/0/10/20 to 200°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, RS232 |
| Material | Bath Tank: stainless steel |
| Bath Opening | 5.9 x 8.7" (14.99 x 22.1 cm) |
| Bath Depth | 7.9" (20.07 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 8 to 10 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 18.1" (45.97 cm) |
| Product Width | 14.2" (36.07 cm) |
| Product Height | 29.1" (73.91 cm) |
| Product Weight | 84.2 lbs (38.19 kg) |
