With this circulator, you can provide cooling or heating performance to your internal or external applications. The unit features RS232, USB and external Pt100 connections.
With this circulator, you can provide cooling or heating performance to your internal or external applications. The unit features RS232, USB and external Pt100 connections.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

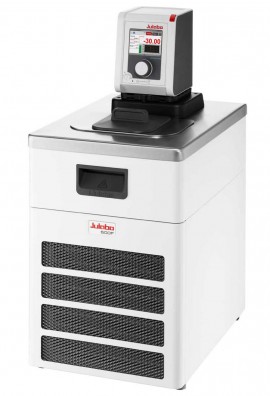

Use this Julabo DD-600F RS232 DYNEO Refrigerated/Heating Circulator with RS232 to control the temperature of your internal or external application. The unit offers a wide temperature range of -31 to 392°F (-35 to 200°C) and a flow rate of 22 L/min. The circulator is equipped with Pt100, USB and RS232 connections.
Features
| Working Temperature Range | -31 to 392°F (-35 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.07/0.19/0.33/0.5/0.54/0.6 kW (-30/-20/-10/0/10/20 to 200°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, RS232 |
| Material | Bath Tank: stainless steel |
| Bath Opening | 5.1 x 5.9" (12.95 x 14.99 cm) |
| Bath Depth | 5.9" (14.99 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 5 to 7.5 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 16.1" (40.89 cm) |
| Product Width | 17.3" (43.94 cm) |
| Product Height | 17.3" (43.94 cm) |
| Product Weight | 54.5 lbs (24.72 kg) |
