Equipped with a 3.5" (8.89 cm) display and a central rotary knob, this circulator offers simple operation. The circulator provides a working temperature range of -31 to 392°F (-35 to 200°C).
Equipped with a 3.5" (8.89 cm) display and a central rotary knob, this circulator offers simple operation. The circulator provides a working temperature range of -31 to 392°F (-35 to 200°C).
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

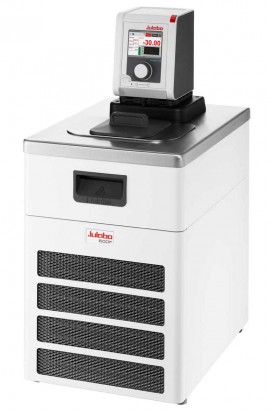

Capable of delivering powerful cooling, this Julabo DD-600F Analog DYNEO Refrigerated/Heating Circulator with Analog Interface offers a wide working temperature range of -31 to 392°F (-35 to 200°C). The circulator features a 3.5" (8.89 cm) color display and a central rotary knob for intuitive operation.
Features
| Working Temperature Range | -31 to 392°F (-35 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.07/0.19/0.33/0.5/0.54/0.6 kW (-30/-20/-10/0/10/20 to 200°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, analog |
| Material | Bath Tank: stainless steel |
| Bath Opening | 5.1 x 5.9" (12.95 x 14.99 cm) |
| Bath Depth | 5.9" (14.99 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 5 to 7.5 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 16.1" (40.89 cm) |
| Product Width | 17.3" (43.94 cm) |
| Product Height | 17.3" (43.94 cm) |
| Product Weight | 54.5 lbs (24.72 kg) |
| Working Temperature Range | -31 to 392°F (-35 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.07/0.19/0.33/0.5/0.54/0.6 kW (-30/-20/-10/0/10/20 to 200°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, analog |
| Material | Bath Tank: stainless steel |
| Bath Opening | 5.1 x 5.9" (12.95 x 14.99 cm) |
| Bath Depth | 5.9" (14.99 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 5 to 7.5 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 16.1" (40.89 cm) |
| Product Width | 17.3" (43.94 cm) |
| Product Height | 17.3" (43.94 cm) |
| Product Weight | 54.5 lbs (24.72 kg) |
