Install this circulator to provide you internal or external application with cool air. The circulator can be operated with the 3.5" (8.89 cm) display and rotary knob.
Install this circulator to provide you internal or external application with cool air. The circulator can be operated with the 3.5" (8.89 cm) display and rotary knob.

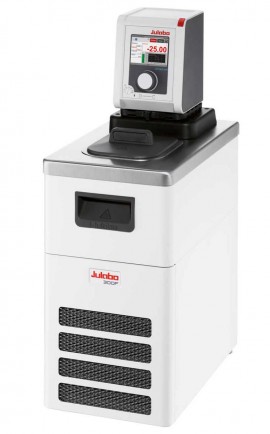

Equipped with an external Pt100 connection, USB port and RS-232 interface, Julabo DD-300F RS232 DYNEO Refrigerated/Heated Circulator with RS232 is great for internal and external applications. The circulator offers a vast working temperature range of -13 to 392°F (-25 to 200°C) and a pump capacity of 22 L/min.
Features
| Working Temperature Range | -13 to 392°F (-25 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.08/0.19/0.27/0.3 kW (-20/-10/0/10 to 200°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, RS-232 |
| Material | Bath Tank: stainless steel |
| Bath Opening | 5.1 x 5.9" (12.95 x 14.99 cm) |
| Bath Depth | 5.9" (14.99 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 3 to 4 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 16.5" (41.91 cm) |
| Product Width | 9.4" (23.88 cm) |
| Product Height | 26" (66.04 cm) |
| Product Weight | 54.5 lbs (24.72 kg) |
| Working Temperature Range | -13 to 392°F (-25 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.08/0.19/0.27/0.3 kW (-20/-10/0/10 to 200°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings, RS-232 |
| Material | Bath Tank: stainless steel |
| Bath Opening | 5.1 x 5.9" (12.95 x 14.99 cm) |
| Bath Depth | 5.9" (14.99 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 3 to 4 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 16.5" (41.91 cm) |
| Product Width | 9.4" (23.88 cm) |
| Product Height | 26" (66.04 cm) |
| Product Weight | 54.5 lbs (24.72 kg) |
