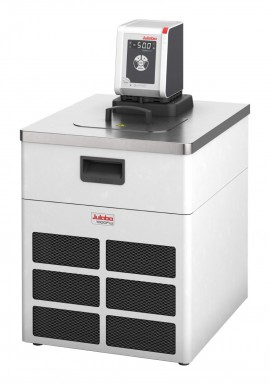

Julabo CORIO CP-1000FW Refrigerated/Heating Circulator, one-stage water, -50 to 200°C

Model: CP-1000FW | Order No: 9013727.02

Julabo CORIO CP-1000FW Refrigerated/Heating Circulator, one-stage water, -50 to 200&deg;C-

Downloads: datasheet manual

Julabo CORIO CP-1000FW Refrigerated/Heating Circulator, one-stage water, -50 to 200°C

Model: CP-1000FW | Order No: 9013727.02

Ideal for internal and external applications, this refrigerated/heating circulator features a -50 to 200°C working temperature range, one-stage water, and an easy-to-read display. In addition, this circulator has an enhanced pump performance and can handle standard tasks and routine work in laboratories.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Julabo 9013707 CORIO CP-1000F Refrigerated/Heating Circulator, -50 to 200°C, 1.3 to 2 gal

Model: 9013707 | Order No: 9013707.02

The bath circulator is designed with an adjustable flow and pump speed. The USB and RS232 ports allow for PC connection and data-logging applications.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Recommended Accessories

Julabo 8970850 Shut-Off Valve, -76 to 392°F, M16 x 1 male to female connector

8970850

Julabo 8900020 Profibus DP Interface, 1 input

8900020

Julabo 8930220 Single-Insulated Metal Tubing, M16 x 1, 1.64'

8930220

Julabo 8891605 Threaded Adapters, M16x1 F x 0.25" F, 2-pack

8891605

Julabo CP-1000FW Offers

Very quiet with a removable ventilation grid, this circulator provides more robustness, more reliability, and more advantages. In addition, this circulator offers easy switching between internal and external circulations.

Features

Bright, white, easy to read display
Very quiet
Powerful and infinitely adjustable pressure pump
USB connection
RS232 interface for online communication
Bath lid and drain tap included
Removable ventilation grid
Refrigeration unit without side vents
Class III (FL) according to DIN 12876-1
Easy switching between internal and external circulation
Integrated pump connection M16 x 1
Space-saving cooling coil design yields more usable space in the bath tank
Early warning system for low liquid level
Brilliant: Bright display with clear illumination can be read easily from a long distance
Touching permitted: Maximum safety and the ergonomic plastic handle protects your fingers from hot surfaces
Intelligent operating concept and is ready for operation with just a few quick and easy steps
Connectivity: Remote control made easy and features a USB connection and RS232 interface
Integrated timer: Includes an integrated timer function and when the set time has elapsed, a signal sounds and the device switches off (Setting range: 0 to 999 minutes)
More bath: Designed for more comfort, thanks to the recessed cooling coil, the internal bath provides more space
Everything at the front: All operating controls and safety functions are accessed easily and comfortably from the front
Free up space: Place your CORIO right next to an application, another unit, or wall which is made possible positioning vents and connections only on the front and rear sides
Internal and external: The pump is controlled via a lever located directly below the display and easily change between internal and external circulation
Handle with ease: Makes day-to-day work easy and comfortably move your CORIO around by using the ergonomic handles (front and rear)
Safety: Complies with Class III (FL), CORIO C complies with Class I (NFL) according to DIN 12876-1 and switches off automatically in case of high temperature or low liquid level alarm
Powerful and adjustable: Strong pump capacity, infinitely adjustable
Early warning system for low liquid level: Maximum safety for your application and optical and audible alarm allows user to refill bath fluid in time
ATC: Absolute temperature calibration
Solid: Minimized energy loss through high-quality insulation
Exact: PID1 control and 'Active Cooling Control' make the new CORIO precise and perfect
Mobile (Extra easy handling): Integrated castors for easy repositioning of refrigerated circulators
Locked in (More process safety): The lockable power plug guarantees safe connection
Condensation protection (Superb design solution): Integrated ventilation directs air over the bath lid and minimizes condensation
Tidy: The special drain tap for easy draining of bath fluids without tools
Easy connection: Inclined pump connections (M16 x 1) facilitate the connection of applications and each unit includes 2 barbed fittings of 0.67" (⁸⁄₁₂ mm) diameter each

Applications

Temperature control
Laboratories

Julabo CP-1000FW Specifications

115 V/60 Hz (Nema N5-20 Plug)
Heating Capacity kW	1
Viscosity Maximum cSt	50
Pump Capacity Flow	Rate L/minute: 8 to 27 Pressure bar: 0.1 to 0.7
Power Consumption A	16
Refrigerant Stage 1
Refrigerant	R449A
Global Warming Potential for R449A	1397
Carbon Dioxide Equivalent	0.265
Filling Weight	0.42 lbs (190 g)
Electronics
Interfaces	RS232, USB
Temperature	Control: PID1 Display: LED Setting: Keypad
Absolute Temperature Calibration	Three point calibration
Electronic Timer Hour:Minute	0…999
General Specifications
Voltage	115 V/60 Hz, nema N5-20 plug, R449A
Cooling Capacity (Ethanol)	20°C: 1 kW 10°C: 1 kW 0°C: 0.96 kW -10°C: 0.73 kW -20°C: 0.51 kW -30°C: 0.25 kW -40°C: 0.11 kW
Bath	Tank: Stainless steel Cover: Integrated
Cooling	Of compressor: One-stage water Water temperature maximum C°: 30 Water pressure maximum bar: 6 Water difference pressure bar: 0.3 Water consumption L/minute: 1.1
Temperature	Setting the resolution of the temperature display °C: 0.1 Working range: 50 to 200°C Stability °C: ±0.03 Ambient: 5 to 40°C Display resolution °C: 0.01 to 0.1
Pump	Function: Pressure pump Type: Immersion pump Connections: M16 x 1 male
Filling Volume L	5 to 7.5
Classifications	Classification III (FL)
Dimensions	16.53 x 19.29 x 29.13" (42 x 49 x 74 cm) Barbed fittings inner diameter: 0.03" (⁸⁄₁₂ mm)
Weight	113.5 lbs (51.5 kg)

Click here for complete specifications on the Julabo CP-1000FW

What's included with the Julabo CP-1000FW

Refrigerated/Heating Circulator
2 x Barbed Fittings
One-Year Warranty
