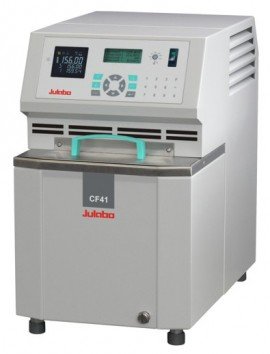

Julabo CF41 Cryo-Compact Circulator, -40 to 200°C, 115 V

Model: 94003412

Julabo CF41 Cryo-Compact Circulator, -40 to 200°C, 115 V-

Downloads: datasheet manual

More Julabo Products

Ask an Expert

Julabo CF41 Cryo-Compact Circulator, -40 to 200°C, 115 V

Model: 94003412

Ideal for areas with limited space, this cryo-compact circulator features a compact footprint and pump connections for external temperature applications. Additionally, this circulator includes a dual-screen display with a numeric keypad for easy data entry and instrument reading.

Ideal for areas with limited space, this cryo-compact circulator features a compact footprint and pump connections for external temperature applications. Additionally, this circulator includes a dual-screen display with a numeric keypad for easy data entry and instrument reading.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Julabo 9400340 CF40 Cryo-Compact Small-Footprint Refrigerated/Heating Circulator, -40 to 302°F-

Julabo 9400340 CF40 Cryo-Compact Small-Footprint Refrigerated/Heating Circulator, -40 to 302°F

Model: 9400340 | Order No: 9400340.2

The heating/refrigerated circulator offers a compact size to leave a small footprint. The unit features a pressure pump with M16 x 1 male fittings.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Julabo 94003412 Offers

Compact and easy to use this cryo-compact circulator includes stainless steel or plastic wetted parts and high-temperature stability. In addition, this circulator features an optical and audible warning system for low liquid levels and allows the user to refill bath fluid before the unit shuts down.

Features

  • Ergonomic design and easy operation
  • Small overall dimensions for lowest space requirement
  • Highly precise ICC cascade temperature control
  • Integrated programmer with 6x60 program steps
  • Classification 3 according to DIN12876-1
  • Bath opening for temperature control of small objects in the bath
  • Front drain
  • A perfect view: Ample, easy to read VFD comfort display for simultaneous display of three values, warning functions, high temperature cut-off, pump stages (resolution 0.01°C)
  • Additional plain text information: Comfortable LCD dialog display for interactive operation with plain text display
  • Pump stage and liquid level: Backlit indicator for selected pump stages and filling volume on Presto® PLUS, Magnum 91 & Forte HT
  • Clearly structured: Comfortable, splash-proof keypad for setpoint adjustment, high/low temperatures, timer and shaking frequeny (SW models)
  • For perfect results: Intelligent cascade control, automatic and self optimizing adjustment of PID control parameters, temperature stability ±0.005°C internal, <±0.05°C external
  • Full control: Temperature control features for individual optimization, access to all important control parameters, additional settings for band limit, limits, co-speed factor, etc
  • Highest measuring accuracy: Absolute temperature calibration for manual compensation of a temperature difference, 3-point calibration
  • Clever pump system: Reliable and consistent pump capacity, electronically adjustable pump stages
  • Control from the external application external Pt100 sensor connection for precise measurement and control directly in the external application
  • Connection compliant to standard RS232/RS485 dual-interface for serial data transmission according to EIA-485 industry standard (2-wire bus technology), upgradable with Profibus DP
  • Optimal program control: For the execution of time and temperature-dependant profiles, 6 temperature profiles with 60 steps maximum, with real-time clock
  • Early warning system for high/low temperature limits maximum safety for applications, optical and audible alarm, convertible to automated cut-off function
  • Enhanced protective functions maximum safety, adjustable high temperature cut-off or dry-running protection, additional display of setpoints permits easy and precise adjustments
  • For flammable bath fluids classification III (FL) according to DIN 12876-1

Applications

  • Temperature control
  • Heating and cooling

Julabo 94003412 Specifications

Temperature Working range: -40 to 200°C
Stability: ±0.02°C
Ambient: 5 to 40°C
Display: VFD, LCD
Setting/Display Resolution 0.01°C
Integrated Programmer 6 x 60 steps
Heating Capacity 1 kW
Cooling Capacity (Medium Ethanol) 20°C, 0.47 kW
0°C, 0.4 kW
-20°C, 0.28 kW
Pump Capacity Flow Rate: 22 to 26 l/minute
Pressure: 5.8 to 10.2 psi
Suction: 2.9 to 5.8 psi
Bath Opening: 7.5 x 1.2" (19.05 x 3.04 cm)
Depth: 7.5" (19.05 cm)
Pump Connections M16x1
Barbed Fittings Diameter (Inner Diameter/mm) 8/12
Filling Volume 5.5 l
Refrigerant R404A
External Pt100 Sensor Connection Integrated
Digital Interface RS232, RS485
Cooling of Compressor Air
Classification According to DIN12876-1 Classification III (FL)
Power 115 V, 60 Hz, 16 A
Dimensions 18.1 x 11 x 18.1" (45.97 x 27.94 x 45.97 cm)
Weight 92 lbs (41.73 kg)
Click here for complete specifications on the Julabo 94003412

What's included with the Julabo 94003412

  • Julabo CF41 Cryo-Compact Circulator, -40 to 200°C, 115 V
datasheet for the Julabo CF41 Cryo-Compact Circulator, -40 to 200°C, 115 V manual for the Julabo CF41 Cryo-Compact Circulator, -40 to 200°C, 115 V
