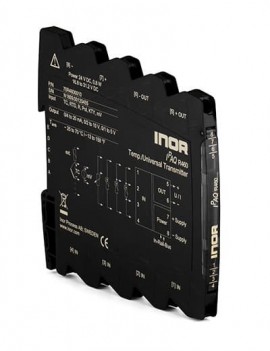

INOR IPAQ-R460 4-Wire Transmitter for resistance thermometers and thermocouples configurable via software or DIP switches

Model: IPAQ-R460 | Order No: 70R4600010

Downloads: datasheet manual

INOR IPAQ-R460 4-Wire Transmitter for resistance thermometers and thermocouples configurable via software or DIP switches

Model: IPAQ-R460 | Order No: 70R4600010

IPAQ R460 is a programmable 4-wire (separately powered) transmitter. It converts Pt, Ni, KTY and TC sensor signals as well as potentiometer, resistor and mV signals to isolated standard signals.

Your Price	$380.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

INOR IPAQ-R460 Offers

Features

Easy configuration via DIP switch or via INOR-Set
Switchable service functions for easy commissioning
3-port isolation Protection against measurement errors due to earthing problems and interference voltage carry-over
Extremely slim design 0.24" (6.2 mm) narrow bayed housing for simple and space-saving top-hat rail mounting
Optional in-rail bus mounting rail connector allows fast and cost-effective installation
Safe isolation according to EN 61140 Protection of maintenance personnel and downstream equipment from impermissibly high voltage

INOR IPAQ-R460 Specifications

Type	Rail-mounted
Input	RTD, Thermocouple, mV, ohm and KTY
Input RTD	Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni500, Ni1000
Input Thermocouple	Typ B, E, J, K, L, N, R, S, T, U, W5Re_W26Re, W3Re_W25Re;
Measuring Range RTD	Pt 100, Pt 200, Pt 500, Pt 1000: -328 to 1562°F (-200 to 850°C) Ni 100: -76 to 482°F (-60 to 250°C) Ni 200, Ni 500, Ni 1000: -58 to 356°F (-50 to 180°C)
Measuring Range Thermocouple	Type B: 482 to 3308°F (250 to 1820°C) Type C (W5Re_W26Re): 32 to 4199°F (0 to 2315°C) Type D (W3Re_W25Re): 32 to 4199°F (0 to 2315°C) Type E: 518 to 1832°F (270 to 1000°C) Type J: 410 to 2192°F (210 to 1200°C) Type K: 392 to 1652°F (200 to 900°C) Type L: 392 to 1652°F (200 to 900°C) Type N: 518 to 2372°F (270 to 1300°C) Type R: -58 to 3214.4°F (-50 to 1768°C) Type S: -58 to 3214.4°F (-50 to 1768°C) Type T: -454 to 752°F (-270 to 400°C) Type U: 392 to 1112°F (200 to 600°C)
Type of Transmitter	Digital
Output	0 to 20 mA, 4 to 20 mA, 0 to 10 mA, 2 to 10 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V
Galvanic Isolation	3 kVAC, 50 Hz, 1 min
Measuring Channels	1 channel
Sensor Connection	2-, 3-, 4-wire
Power Supply	24 VDC Voltage range 9.6 to 31.2 VDC, approx. 0.8 W
Typical Accuracy	Max. ±0.05 K or ±0.05% of measuring range
Configuration	DIP switch or INOR-Set
EMC	EN 61326-1
Ambient Temperature	Operation: -13 to 158°F (-25 to 70°C) Transport and storage: -40 to 185°F (-40 to 85°C)
Design	0.24" (6.2 mm):n (0.244″) bayed case, protection class IP 20, mounting on 1.38" (35 mm) top-hat rail acc. to EN 60715
Weight	approx. 2.47 oz (70 g)

Click here for complete specifications on the INOR IPAQ-R460
