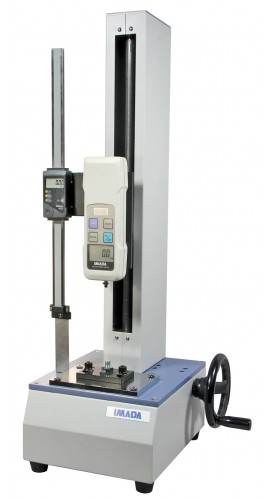

IMADA HV-110-L Long Stroke Test Stand-

More IMADA Products

Ask an Expert

IMADA HV-110-L Long Stroke Test Stand

Model: HV-110-L

Vertical wheel operated force measurement test stands feature a compact design with several ranges. One stand for both compression (push) and tension (pull) tests.

Vertical wheel operated force measurement test stands feature a compact design with several ranges. One stand for both compression (push) and tension (pull) tests.

Your Price $2196.00 USD
Availability 1 Week
Quantity

IMADA HV-110-L Offers

Features

  • Hand wheel offers precise movement that is ideal for force measurement that requires relatively consistent speed and maximum gauge control
  • Rack and pinion design allows the force gauge to remain stationary when the wheel is released
  • Each rotation of the wheel will move the carriage of the test stand ~2mm
  • Optional digital distance meter is available on all models (add -S to the model number)
  • Force gauge must be ordered separately

IMADA HV-110-L Specifications

Capacity110 lbf
Stroke11.3" (288mm)
Clearance16.5" (420mm)
Travel2mm

What's included with the IMADA HV-110-L

  • IMADA HV-110-L Long Stroke Test Stand

IMADA HV-110-L Offers

Features

  • Hand wheel offers precise movement that is ideal for force measurement that requires relatively consistent speed and maximum gauge control
  • Rack and pinion design allows the force gauge to remain stationary when the wheel is released
  • Each rotation of the wheel will move the carriage of the test stand ~2mm
  • Optional digital distance meter is available on all models (add -S to the model number)
  • Force gauge must be ordered separately
Show More...

IMADA HV-110-L Specifications

Capacity110 lbf
Stroke11.3" (288mm)
Clearance16.5" (420mm)
Travel2mm

What's included with the IMADA HV-110-L

  • IMADA HV-110-L Long Stroke Test Stand
