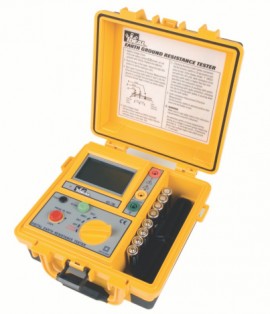

Earth Ground Resistance Meter measures soil resistivity and ground resistance with the 3-point fall-of-potential method.
Earth Ground Resistance Meter measures soil resistivity and ground resistance with the 3-point fall-of-potential method.
Features
| Operating Frequency | 820 Hz, 2 mA approximately |
| Earth Resistance | Range: 20/200/2000Ω |
| Resolution | 0 to 19.99Ω (0.01Ω) 0 to 199.9Ω (0.1Ω) 0 to 1999Ω (1Ω) |
| Earth Voltage | 0 to 200V AC, 40 to 500Hz |
| Earth Resistance | Accuracy: ±(2%reading±2digits) or ±0.1Ω, whichever is greater. |
| Earth Voltage | ±(1% reading±2digits) |
| Display | LCD 3½ digit (2000 counts) |
| Low Battery Indication | Symbol appears on the display |
| Data Hold Indication | Symbol appears on the display |
| Over Range Indication | “ 1 ” (MSD) |
| Safety Standard | IEC/EN 61010-1, Installation CATIII - 200V |
| Power Source | 8 x 1.5V (AA) batteries required |
| Dimensions | 8.3 x 8.3 x 4” (210 x 210 x 100 mm) |
| Weight | Approx. 3 lbs (1361 g), batteries included |
| Accessories Included | Hard Case, Test leads (red-33m, yellow-33m, green-5m), 2 Auxiliary earth spikes, simplified measurement probe, and Instruction manual |
Click on a category to view a selection of compatible accessories with the IDEAL Industries 61-796 Earth Ground Resistance Meter.
