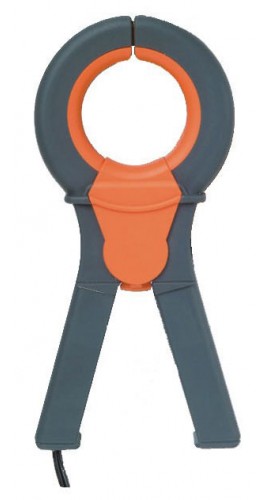

Rigid clamp for the HT Instruments PQAs. Features a 54 mm diameter.
Rigid clamp for the HT Instruments PQAs. Features a 54 mm diameter.
Features
| Accuracy: 1 A FS | |
| Output Signal | 1 to 100mA: ±(3%rdg + 0.5mV) 100 to 500 mA: ±(2%rdg + 1mV) 500 mA to 1.2 A: ±(1%rdg + 1mV) |
| Phase Difference | 500 mA to 1.2 A: <10° |
| Accuracy: 100 A FS | |
| Output Signal | 100 mA to 1 A: ±(1%rdg + 1mV) 1 to 10 A: ±(0.5%rdg + 0.5mV) 10 to 120 A: ±(0.5%rdg) |
| Phase Difference | 1 to 10 A: 2° 10 to 120 A: 1° |
| Accuracy: 1000 A FS | |
| Output Signal | 1 to 10 A: ±(1%rdg + 0.5mV) 10 to 100 A: ±(0.5%rdg + 1mV) 100 to 1200 A: ±(0.5%rdg) |
| Phase Difference | 10 to 100 A: 1.5° 100 to 1200 A: 1° |
| General Specifications | |
| Measuring Range | 0.001 to 1.2 A, 0.1 to 120 A, 1 to 1200 A AC |
| Frequency Range | 40 Hz to 10 kHz |
| Temperature Range | 14 to 122°F (-10 to 50°C) |
| Dimensions | 105 x 225 x 31 mm |
