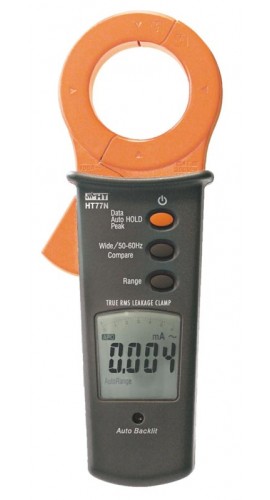

HT Instruments HT77N AC TRMS Leakage Current Clamp Meter

Model: HT77N

Test in dark environments with this leakage clamp meter that has a automatic backlight sensor. Measure leakage currents causing typical RCD problems.

Your Price	$530.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your HT77N AC TRMS Leakage Current Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Traceable Calibration Certificate for your HT77N AC TRMS Leakage Current Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

HT Instruments HT77N Offers

This meter features a built in 100 Hz low pass filter to cut off harmonic components. It is also provided with a sophisticated automatic backlight sensor to perform testing in dark environments. The meter complies with IEC/EN61010-1 safety standards under CAT III 300V.

Features

AC current up to 100 A TRMS
100Hz low pass filter
Alarm thresholds on measurements
Data HOLD, Auto HOLD, Peak HOLD
Manual and automatic range
Automatic backlight
Bargraph
Auto power off
Low battery indication

Applications

Non-invasive checks of insulation
Electronic equipment
Leakage and fault currents

HT Instruments HT77N Specifications

AC Current (TRMS)
Range	6.000, 60.00, 600.0 mA, 6.000, 60.00, 100.0 A
Resolution	0.001, 0.01, 0.1 mA, 0.001, 0.01, 0.1 A
Accuracy (50 to 60 Hz)	6.000, 60.00, 600.0 mA, 6.000 A: ±(1.0%rdg + 8gt) 60.00, 100.0 A 0 to 50 A: ±(1.0%rdg + 8dgt) 50 to 60 A: ±(5.0% rdg + 6dgt) 60 to 100 A: ±(8.0% rdg + 6dgt)
Accuracy (61 to 400 Hz)	6.000, 60.00, 600.0 mA, 6.000 A: ±(2.0%rdg + 11dgt) 60.00, 100.0 A 0 to 40 A: ±(2.0%rdg + 9dgt) 40 to 100 A: ±(30% rdg + 9dgt)
Overload Protection	120 Arms, 600 Vrms
AC Current (TRMS with Internal Low Pass Filter)
Range	6.000, 60.00, 600.0 mA, 6.000, 60.00, 100.0 A
Resolution	0.001, 0.01, 0.1 mA, 0.001, 0.01, 0.1 A
Accuracy (50 to 60 Hz)	6.000, 60.00, 600.0 mA, 6.000 A: ±(2%rdg + 8gt) 60.00, 100.0 A 0 to 50 A: ±(2.0%rdg + 8dgt) 50 to 60 A: ±(6.0% rdg + 8dgt) 60 to 100 A: ±(9.0% rdg + 8dgt)
Overload Protection	120 Arms, 600 Vrms

Click here for complete specifications on the HT Instruments HT77N

What's included with the HT Instruments HT77N

AC TRMS Leakage Current Clamp Meter
Carrying Bag
2 x 1.5 V Batteries
Manual
