HT Instruments HT4012 AC Clamp Meter, 400 A

Model: HT4012

Downloads: datasheet manual

HT Instruments HT4012 AC Clamp Meter, 400 A

Model: HT4012

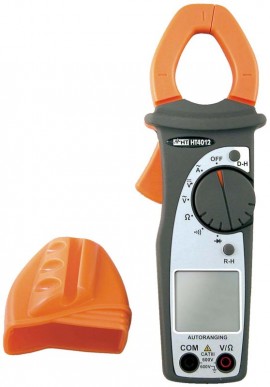

Hold test leads while measuring and have one hand free to work thanks to the practical rubber cap mounted on the jaw. Measure AC current, AC/DC voltage, resistance and continuity.

Your Price	$169.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your HT4012 AC Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Traceable Calibration Certificate for your HT4012 AC Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

HT Instruments HT4012 Offers

Features

AC current up to 400 A
AC/DC voltage up to 600 V
Resistance
Continuity test
Diode test
Automatic/Manual range
Auto power off
Data hold function
Low battery indication

Applications

Plant maintenance
Electrical troubleshooting
Automotive

HT Instruments HT4012 Specifications

DC Voltage
Range	2, 20, 200, 600 V
Resolution	2 V: 1 mV 20 V: 10 mV 200 V: 100 mV 600 V: 1 V
Accuracy	2, 20, 200 V: ±(0.8%rdg + 2gt) 600 V: ±(1.0%rdg + 2gt)
Overload Protection	600 V DC/AC RMS
AC Voltage
Range	2, 20, 200, 600 V
Resolution	2 V: 1 mV 20 V: 10 mV 200 V: 100 mV 600 V: 1 V
Accuracy	2, 20, 200 V: ±(1.0%rdg + 3gt) 600 V: ±(1.2%rdg + 3gt)
Overload Protection	600 V DC/AC RMS
General Specifications
Operating Temperature	41 to 104°F (5 to 40°C) R.H.: 0 to 80%
Storage Temperature	14 to 140°F (-10 to 60°C) R.H.: 0 to 70%

Click here for complete specifications on the HT Instruments HT4012

What's included with the HT Instruments HT4012

AC Clamp Meter
Couple of Test Leads
Rubber Test Lead Holster
Carrying Bag
2 x 1.5 V Batteries
Manual

datasheet for the HT Instruments HT4012 AC Clamp Meter, 400 A manual for the HT Instruments HT4012 AC Clamp Meter, 400 A
