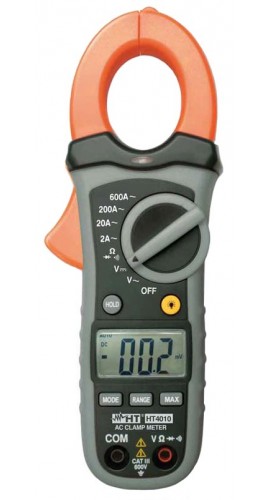

HT Instruments HT4010 AC Clamp Meter

Model: HT4010

Downloads: datasheet manual

HT Instruments HT4010 AC Clamp Meter

Model: HT4010

Ideal for simple measurements in home and industrial environments, this clamp meter measures AC current up to 600 A, AC/DC voltage, resistance and continuity.

Your Price	$125.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your HT4010 AC Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Traceable Calibration Certificate for your HT4010 AC Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

HT Instruments HT4010 Offers

Features

DC voltage
AC voltage
DC current with integrated AC/DC current clamp meter up to 60 A
Resistance and continuity test with buzzer
Frequency of current and voltage
Data hold
Auto/manual range
Auto power off

Applications

Plant maintenance
General household use
Electrical troubleshooting
Automotive

HT Instruments HT4010 Specifications

DC Voltage
Range	200 mV, 2.000, 20.00, 200.0, 600 V
Resolution	200 mV: 0.1 mV 2.000 V: 0.001 V 20.00 V: 0.01 V 200.0: 0.1 V 600 V: 1 V
Accuracy	200 mV: ±(0.8%rdg + 2dgt) 2.000, 20.00, 200.0 V: ±(1.5%rdg + 2dgt) 600 V: ±(2.0%rdg + 2dgt)
Input Impedance	10 MΩ
Overload Protection	600 V DC/ACrms
AC Voltage
Range	200.0 mV, 2.000, 20.00, 200.0, 600 V
Resolution	200 mV: 0.1 mV 2.000 V: 0.001 V 20.00 V: 0.01 V 200.0: 0.1 V 600 V: 1 V
Accuracy	200 mV: ±(1.5%rdg + 3.5dgt) 2.000, 20.00, 200.0 V: ±(1.8%rdg + 8dgt) 600 V: ±(2.5%rdg + 8dgt)
Input Impedance	10 MΩ
Overload Protection	600 V DC/ACrms

Click here for complete specifications on the HT Instruments HT4010

What's included with the HT Instruments HT4010

AC Clamp Meter
Test Leads
Carrying Bag
Batteries
User Manual

datasheet for the HT Instruments HT4010 AC Clamp Meter manual for the HT Instruments HT4010 AC Clamp Meter
