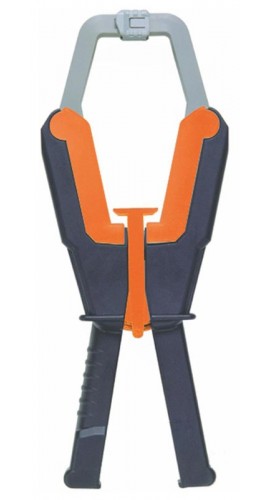

Rigid clamp for the HT Instruments PQAs. Measures 3000 A AC with a 70 mm diameter.
Rigid clamp for the HT Instruments PQAs. Measures 3000 A AC with a 70 mm diameter.
Features
| Accuracy | |
| Output Signal | 10 A: ±(1%rdg + 2mV) 100 A: ±(1%rdg + 0.5mV) 1000 A: ±(1%rdg) 3000 A: ±(0.5%rdg) |
| Phase Difference | 10 A: 1° 100 A: 1° 1000 A: 40 minutes 3000 A: 20 minutes |
| General Specifications | |
| Measuring Range | 1 to 3000 A AC |
| Output Signal | 1 V AC |
| Ratio | 0.33 mV/A |
| Frequency Range | 40 Hz to 5 kHz |
| Dielectric Strength | 5.5 KV 50 Hz 1 min |
| Temperature Range | 14 to 122°F (-10 to 50°C) |
| Dimensions | 133 x 336 x 52 mm |
| Weight | 1.7 kg |
