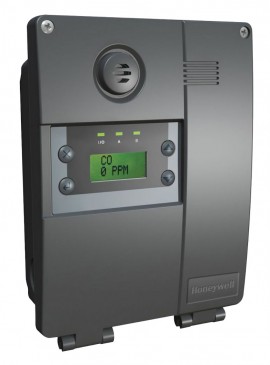

Capable of detecting a range of toxic and combustible gases found in commercial building spaces and outbuildings, this Modbus/BACnet gas monitor features a wall mount and 24 V AC. In addition, this monitor uses BAS or controller to increase energy savings, extend fan life, and align with green building best practices.
Capable of detecting a range of toxic and combustible gases found in commercial building spaces and outbuildings, this Modbus/BACnet gas monitor features a wall mount and 24 V AC. In addition, this monitor uses BAS or controller to increase energy savings, extend fan life, and align with green building best practices.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Fixed Multi-Gas Detectors category for similar products.
Or let's do a search and help you find what you need:
Capable of detecting CO, NO2, O2, H2, H2S, CH4, and C3H8 gases (sensors sold separately), this gas monitor that features an intelligent design to reduce the cost of ownership while increasing the flexibility of the application. In addition, this monitor can also operate with existing controller-based gas monitoring systems and wired-wireless gas monitoring system components.
Features
Modbus configuration
Supports Modbus protocol to daisy-chain E3 Point detectors, providing up to 96 points of monitoring on a serial bus. Excellent option for controller based (VA301C) installations common in larger applications. A relay output is provided as an option for activating ventilation directly (e.g. when fan is located in close proximity to detectors).
BACnet IP configuration
This monitors outputs directly to BACnet or other BAS. Alarms, strobes and horns are activated through BAS with link to DCV/HVAC controls. This system design supports new and retrofit installations for large buildings, and can couple with a controller to effectively integrate wired system components. A relay output is provided as an option for activating ventilation directly (e.g. when fan is located in close proximity to detector).
Reflex® keeps you safer
This patented Reflex® technology adds this extra degree of precision and diligence to sensor monitoring to make doubly sure you're safe. Reflex bounces electrical signals into this monitor's electrochemical sensor cell at regular intervals, a form of electronic bump testing and continuous monitoring of cell response.
Plug-n-play ease
This monitors plug-n-play sensor (sold separately) is factory calibrated and works out of the box. Upon installation, this monitor automatically configures for quick operation. You benefit from easier installation and maintenance, and greater adaptability to changing building and safety requirements.
Flexible operation
Cost-effective
Advanced sensing technology
Certifications
Applications
| Uses | Wall mounted network gas detector for monitoring toxic, oxygen, and combustible gases |
| Detection Ranges and Alarm Levels | CO (Carbon monoxide): Resolution 1 ppm Range: 0 to 250 ppm Alarm A: 25 ppm Alarm B: 100 ppm Alarm C: 225 ppm H2S (Hydrogen sulfide): Resolution: 0.1 ppm Range: 0 to 50 ppm Alarm A: 10 ppm Alarm B: 15 ppm Alarm C: 20 ppms NO2 (Nitrogen dioxide): Resolution: 0.1 ppm Range: 0 to 10 ppm Alarm A: 0.7 ppm Alarm B: 2 ppm Alarm C: 9 ppm O2 (Oxygen): Resolution: 0.1% volume Range: 0 to 25% volume Alarm A: 19.5% volume Alarm B: 22% volume Alarm C: 22.5% volume H2 (Hydrogen): Resolution: 0.5% LEL Range: 0 to 100% LEL Alarm A: 25% LEL Alarm B: 50% LEL Alarm C: 90% LEL CH4 (Methane): Resolution: 0.5% LEL Range: 0 to 100% LEL Alarm A: 25% LEL Alarm B: 50% LEL Alarm C: 90% LEL C3H8 (Propane): Resolution: 0.5% LEL Range: 0 to 100% LEL Alarm A: 25% LEL Alarm B: 50% LEL Alarm C: 90% LEL |
| Accuracy | ±3% of full scale at 77°F (25°C) CO only: 5% of reading at 150 ppm and 77°F (25°C;) long term drift: <5% per year |
| Display | 8 character, 2 line backlit LCD |
| Visual Indicators | Green LED: Power Amber LED 1: Alarm/fault Amber LED 2: Alarm/fault |
| Audible Alarm | >85 dBA at 10' (3 m) |
| Response Time | T90 < 50 seconds With ECLAB T90 < 240 seconds |
| Relay Output | 1 DPDT relay, 5 A at 250 VAC; 5 A at 30 V DC |
| Communications | RS485 modbus; BACnet MS/TP master |
| Operating Environment | Commercial, indoor, safe area |
| Operating Temperature | H2S, NO2, O2, CH4, H2, C3H8: -40 to 122°F (-40 to 50°C) CO: -4 to 122°F (-20 to 50°C) |
| Power Requirement | 24 V AC nominal (17 to 27 V AC), 50/60 Hz, 0.35 A; 24 VDC nominal (20 to 38V DC) |
| Enclosure | Polycarbonate |
| Certification | Standard for Safety for Electrical Equipment for Measurement, Control, and Laboratory Use; Part 1: General Requirements UL 61010-1 2nd Edition, Dated 07/12/2004, With Revisions Through 10/28/2008; Harmonized with CSA C22.2 No. 61010-1-04, Update No. 1 Dated October 2008 (2009); Certified by Intertek to comply with IEC 61010-1:2010 (Third Edition) E3Point can be used with the 301C24 to construct a California Title 24 compliant gas detection system. |
| Dimensions | 8.09 x 5.87 x 2.65" (20.56 x 14.90 x 6.72 cm) |
| Uses | Wall mounted network gas detector for monitoring toxic, oxygen, and combustible gases |
| Detection Ranges and Alarm Levels | CO (Carbon monoxide): Resolution 1 ppm Range: 0 to 250 ppm Alarm A: 25 ppm Alarm B: 100 ppm Alarm C: 225 ppm H2S (Hydrogen sulfide): Resolution: 0.1 ppm Range: 0 to 50 ppm Alarm A: 10 ppm Alarm B: 15 ppm Alarm C: 20 ppms NO2 (Nitrogen dioxide): Resolution: 0.1 ppm Range: 0 to 10 ppm Alarm A: 0.7 ppm Alarm B: 2 ppm Alarm C: 9 ppm O2 (Oxygen): Resolution: 0.1% volume Range: 0 to 25% volume Alarm A: 19.5% volume Alarm B: 22% volume Alarm C: 22.5% volume H2 (Hydrogen): Resolution: 0.5% LEL Range: 0 to 100% LEL Alarm A: 25% LEL Alarm B: 50% LEL Alarm C: 90% LEL CH4 (Methane): Resolution: 0.5% LEL Range: 0 to 100% LEL Alarm A: 25% LEL Alarm B: 50% LEL Alarm C: 90% LEL C3H8 (Propane): Resolution: 0.5% LEL Range: 0 to 100% LEL Alarm A: 25% LEL Alarm B: 50% LEL Alarm C: 90% LEL |
| Accuracy | ±3% of full scale at 77°F (25°C) CO only: 5% of reading at 150 ppm and 77°F (25°C;) long term drift: <5% per year |
| Display | 8 character, 2 line backlit LCD |
| Visual Indicators | Green LED: Power Amber LED 1: Alarm/fault Amber LED 2: Alarm/fault |
| Audible Alarm | >85 dBA at 10' (3 m) |
| Response Time | T90 < 50 seconds With ECLAB T90 < 240 seconds |
| Relay Output | 1 DPDT relay, 5 A at 250 VAC; 5 A at 30 V DC |
| Communications | RS485 modbus; BACnet MS/TP master |
| Operating Environment | Commercial, indoor, safe area |
| Operating Temperature | H2S, NO2, O2, CH4, H2, C3H8: -40 to 122°F (-40 to 50°C) CO: -4 to 122°F (-20 to 50°C) |
| Power Requirement | 24 V AC nominal (17 to 27 V AC), 50/60 Hz, 0.35 A; 24 VDC nominal (20 to 38V DC) |
| Enclosure | Polycarbonate |
| Certification | Standard for Safety for Electrical Equipment for Measurement, Control, and Laboratory Use; Part 1: General Requirements UL 61010-1 2nd Edition, Dated 07/12/2004, With Revisions Through 10/28/2008; Harmonized with CSA C22.2 No. 61010-1-04, Update No. 1 Dated October 2008 (2009); Certified by Intertek to comply with IEC 61010-1:2010 (Third Edition) E3Point can be used with the 301C24 to construct a California Title 24 compliant gas detection system. |
| Dimensions | 8.09 x 5.87 x 2.65" (20.56 x 14.90 x 6.72 cm) |
