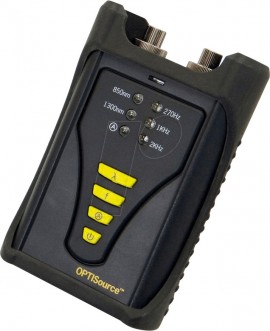

257821 OPTISource Fiber LED Light Source Tester is a high-performance stabilized source that is widely used in fiber network installation and maintenance. The OPTISource 850nm/1300nm wavelength is a high-stability LD light source used for signal attenuation, certification, fault detection, breaks, and bends of multimode fiber cables. It is designed for the testing, installation, and maintenance of optical network systems.
257821 OPTISource Fiber LED Light Source Tester is a high-performance stabilized source that is widely used in fiber network installation and maintenance. The OPTISource 850nm/1300nm wavelength is a high-stability LD light source used for signal attenuation, certification, fault detection, breaks, and bends of multimode fiber cables. It is designed for the testing, installation, and maintenance of optical network systems.
Hobbes 257821 OPTISource series represents advanced technology with high performance in fiber loss measurement, fiber attenuation measurement, and fiber cable identification by using a modulated light source.
Features
Applications
| Wavelength | 850 /1300 nm |
| Spectral Width | 5nm |
| Output Power | -13dBm at 850/1300 -5dBm at 1310/1550nm |
| Stability | ± 0.05dB/15min ±0.10dB/8hrat 1310/1550nm ±0.15dB/8hrat 850nm |
| Connector type | FC/PC (can be exchange SC,ST) |
| Auto power off | 5 minutes |
| Frequency | 1KHz, 2KHz, 270Hz |
| Battery | 4 x AAA Battery |
| Wavelength | 850 /1300 nm |
| Spectral Width | 5nm |
| Output Power | -13dBm at 850/1300 -5dBm at 1310/1550nm |
| Stability | ± 0.05dB/15min ±0.10dB/8hrat 1310/1550nm ±0.15dB/8hrat 850nm |
| Connector type | FC/PC (can be exchange SC,ST) |
| Auto power off | 5 minutes |
| Frequency | 1KHz, 2KHz, 270Hz |
| Battery | 4 x AAA Battery |
