Use this fixture with select Hioki LCRs (sold separately). It is suited to measure ultra-small material.
Use this fixture with select Hioki LCRs (sold separately). It is suited to measure ultra-small material.

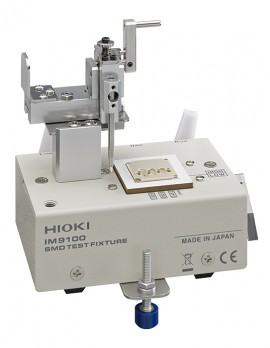

When you need to measure SMDs with electrodes, use the Hioki IM9100 SMD Test Fixture for LCRs. This unit offers a direct connection and accepts both voltage and current inputs. Plus, it features a DC to 8 MHz measurement frequency, making it a great choice for your lab. Comes with instructions and 2 jigs.
Features
| Measurement Terminal | 4-terminal direct connection type (BNC terminals) |
| Connecting Section | 4-terminal type |
| Sample Size Compatibility | 01005 to 0402 (EIA), 0402 to 1005 (JIS) |
| Allowable Input | Voltage: ±42 V peak (AC/DC); current: 0.15 A rms (±0.15 A DC) |
| Frequency Range | DC to 8 MHz |
| Compatibility | Hioki IM35 series LCRs (sold separately) |
| Jig Type | Open; short |
| Compliance | CE |
| Manufacturer Warranty | 3 years |
