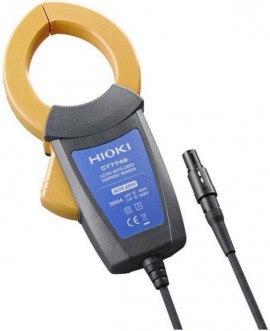

Hioki CT7742 AC/DC Auto-Zero Current Sensor, 2,000A AC/DC, 2.17in

Model: CT7742

Downloads: manual

Hioki CT7742 AC/DC Auto-Zero Current Sensor, 2,000A AC/DC, 2.17in

Model: CT7742

Measure AC/DC current up to 2,000A with this sensor. The sensor boasts an auto-zero function.

Your Price	$661.00 USD
Availability	8 to 9 Weeks
Quantity	Quantity

Hioki CT7742 Offers

Use this Hioki CT7742 AC/DC Auto-Zero Current Sensor to capture precise measurements in changing environments. The auto-zero sensor is built to measure up to 2,000A, and can be paired with a compatible Hioki display unit to perform testing while on the job.

Features

Capture stable, long-term and precise measurements in changing environments
Measures AC/DC current up to 2,000A
Designed to pair with Hioki CM7290 or CM7291 detachable display units (sold separately) for a larger temperature range and auto-zero adjustment
Provides 4 output formats, such as Wave, RMS, peak and Hz, to output data to loggers and more
Handles a bandwidth of DC to 5kHz (-3dB)
CE-compliant design

Hioki CT7742 Specifications

Rated Measurement Current	2,000A AC/DC
Maximum Measurement Current	2,000A (requires derating at frequency)
Maximum Allowable Peak Input	2,840A
Bandwidth	DC to 5kHz (-3dB)
Accuracy	±2.3° (typical)
Output Rate	0.1mV/A
Maximum Rated Voltage to Earth	600V AC/DC (Cat IV), 1,000V AC/DC (Cat III)
Core Diameter	φ2.17in (55mm)
Connection	Hioki PL 14 output
Operating Temperature	-13 to 149°F (-25 to 65°C)
CE Compliant	Yes
Product Length	1.34in (34mm) main unit, 8.2ft (2.5m) cable
Product Width	2.52in (64mm)
Product Height	7.68in (195mm)
Product Weight	18oz (510g)

What's included with the Hioki CT7742

Hioki CT7742 AC/DC Auto-Zero Current Sensor, 2,000A AC/DC, 2.17in

manual for the Hioki CT7742 AC/DC Auto-Zero Current Sensor, 2,000A AC/DC, 2.17in

Description ➕➖

Hioki CT7742 Offers

Features

Capture stable, long-term and precise measurements in changing environments
Measures AC/DC current up to 2,000A
Designed to pair with Hioki CM7290 or CM7291 detachable display units (sold separately) for a larger temperature range and auto-zero adjustment
Provides 4 output formats, such as Wave, RMS, peak and Hz, to output data to loggers and more
Handles a bandwidth of DC to 5kHz (-3dB)
CE-compliant design

Specifications ➕➖

Hioki CT7742 Specifications

Rated Measurement Current	2,000A AC/DC
Maximum Measurement Current	2,000A (requires derating at frequency)
Maximum Allowable Peak Input	2,840A
Bandwidth	DC to 5kHz (-3dB)
Accuracy	±2.3° (typical)
Output Rate	0.1mV/A
Maximum Rated Voltage to Earth	600V AC/DC (Cat IV), 1,000V AC/DC (Cat III)
Core Diameter	φ2.17in (55mm)
Connection	Hioki PL 14 output
Operating Temperature	-13 to 149°F (-25 to 65°C)
CE Compliant	Yes
Product Length	1.34in (34mm) main unit, 8.2ft (2.5m) cable
Product Width	2.52in (64mm)
Product Height	7.68in (195mm)
Product Weight	18oz (510g)

Included ➕➖

What's included with the Hioki CT7742

Hioki CT7742 AC/DC Auto-Zero Current Sensor, 2,000A AC/DC, 2.17in

Resources ➕➖

manual for the Hioki CT7742 AC/DC Auto-Zero Current Sensor, 2,000A AC/DC, 2.17in
