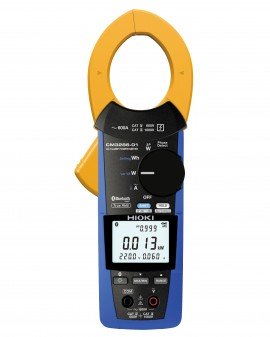

Measures voltage, current, power, power factor, phase angle, reactive power or frequency, as well as detects phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit.
Measures voltage, current, power, power factor, phase angle, reactive power or frequency, as well as detects phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit.
Features
| Measurement Line | Single-phase, Three-phase (should be balanced and no distortion) |
| Measurement Items | Voltage, Current, Voltage/current peak, Active/reactive/apparent power, Power factor, Phase angle, Reactivity, Frequency, Simple Active Energy Consumption (Single-phase) |
| AC Voltage | Measurement range: 80 to 600 V, Single range Basic accuracy 45 to 66 Hz: ±0.7% rdg. ±3 dgt. Frequency characteristics: 45 Hz to 1 kHz, True RMS |
| AC Current | Measurement range: 0.060 to 600 A, 3 range Basic accuracy 45 to 66 Hz: ±1.3% rdg. ±3 dgt. Frequency characteristics: 45 Hz to 1 kHz, True RMS |
| Power | Single phase: 0.005 to 360 kW; Basic accuracy: ±2.0% rdg. ±7 dgt. (50/ 60 Hz, Power factor= 1) Balanced three-phase 3-wire: 0.020 to 623.5 kW; Basic accuracy: ±3.0% rdg. ±10 dgt. (50/ 60 Hz, Power factor= 1) Balanced three-phase 4-wire: 0.040 to 1080 kW; Basic accuracy: ±2.0% rdg. ±3 dgt. (50/ 60 Hz, Power factor= 1) |
| Maximum Rated Voltage to Earth | 600V AC (Measurement category IV) 1000 V AC (Measurement category III) |
| Crest Factor | 6 A/60 A range 3 or less, 600 A/600 V range 1.6 or less |
| Operating Temperature | -13 to 149°F (-25 to 65°C or less) |
| Storage Temperature | -13 to 149°F (-25 to 65°C or less) |
| Dustproof and Waterproof | Grip: IP54 (EN60529), Jaw: IP50 (EN60529) |
| Standards | Safety: EN61010, EMC: EN61326 |
| Power Supply | 2 x LR03 Alkaline batteries |
| Continuous Use | Approx. 25 hours (Backlight off) |
| Core Jaw Diameter | Ø 1.81" (46 mm) |
| Dimensions | 3.23 x 9.49 x 1.46" (82 x 241 x 37 mm) |
| Weight | 15.9 oz (450 g) |
