This clamp meter is built to measure AC/DC current, voltage, continuity and resistance. The meter features a double jaw lever and slim design.
This clamp meter is built to measure AC/DC current, voltage, continuity and resistance. The meter features a double jaw lever and slim design.

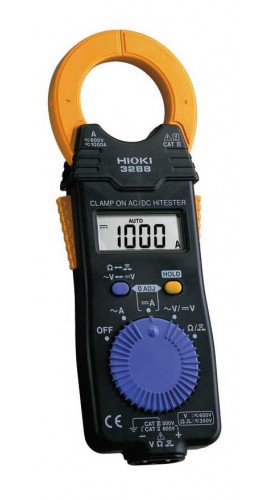

Comfortably test crowded wires with this Hioki 3288 Clamp-On AC/DC HiTester, which features a double jaw lever and a slim profile. The meter is capable of measuring AC/DC current from 100 to 1,000A and voltage up to 600V, as well as continuity and resistance.
Features
| DC Current | 100/1,000A with ±1.5% of reading, ±5 digits accuracy |
| AC Current | 100/1,000A (10 to 500Hz, average rectified) with ±1.5% of reading, ±5 digits accuracy |
| DC Voltage | 419.9mV to 600V in 5 ranges with ±1.3% of reading, ±4 digits accuracy |
| AC Voltage | 4.199 to 600V in 4 ranges with ±2.3% of reading, ±8 digits accuracy (30 to 500Hz, average rectified) |
| Resistance | 419.9Ω to 41.99MΩ in 6 ranges with ±2% of reading, ±4 digits accuracy |
| Continuity Check | Buzzer sounds at 50 ±40Ω or less |
| Display | LCD with a maximum of 4,199 digits and a refresh rate of 2.5 times/second |
| Power Supply | CR2032 coin-type lithium battery |
| Core Jaw Diameter | φ1.38in (35mm) |
| Other Functions | Data hold, auto power save, auto zero (DC A) |
| Product Length | 0.63in (16mm) |
| Product Width | 2.24in (57mm) |
| Product Height | 7.09in (180mm) |
| Product Weight | 5.3oz (150g) |
