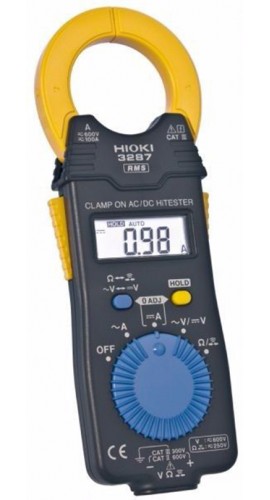

Hioki 3287 Clamp On AC/DC True RMS HiTester

Downloads: datasheet manual

Featuring a 10/100A AC/DC clamp meter with continuity check and resistance testing capabilities.

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Recommended Accessories

Features

DC Current	10/100 A Basic accuracy: ±1.5% rdg. ±5 dgt.
AC Current	10/100 A (10 Hz to 1 kHz, True RMS) Basic accuracy: ±1.5% rdg. ±5 dgt.
DC Voltage	419.9 mV to 600 V, 5 ranges Basic accuracy: ±1.3% rdg. ±4 dgt.
AC Voltage	4.199 to 600 V, 4 ranges (30 to 500 Hz, True RMS) Basic accuracy: ±2.3% rdg. ±8 dgt.
Resistance	419.9 Ω to 41.99 MΩ, 6 ranges Basic accuracy: ±2% rdg. ±4 dgt
Crest Factor	2.5 or less (150 A, 1000 V max.)
Functions	Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display	LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power Supply	1 x Coin type lithium battery (CR2032), Continuous use 25 hours
Measurement Categories	A: CAT III 600V V: CAT III 300V, CAT II 600V
Core Jaw Diameter	Ø 1.38" (35 mm)
Dimensions	2.24 x 7.09 x 0.63" (57 x 180 x 16 mm)
Weight	6 oz (170 g)

datasheet for the Hioki 3287 Clamp On AC/DC True RMS HiTester manual for the Hioki 3287 Clamp On AC/DC True RMS HiTester

Click on a category to view a selection of compatible accessories with the Hioki 3287 Clamp On AC/DC True RMS HiTester.

Features

DC Current	10/100 A Basic accuracy: ±1.5% rdg. ±5 dgt.
AC Current	10/100 A (10 Hz to 1 kHz, True RMS) Basic accuracy: ±1.5% rdg. ±5 dgt.
DC Voltage	419.9 mV to 600 V, 5 ranges Basic accuracy: ±1.3% rdg. ±4 dgt.
AC Voltage	4.199 to 600 V, 4 ranges (30 to 500 Hz, True RMS) Basic accuracy: ±2.3% rdg. ±8 dgt.
Resistance	419.9 Ω to 41.99 MΩ, 6 ranges Basic accuracy: ±2% rdg. ±4 dgt
Crest Factor	2.5 or less (150 A, 1000 V max.)
Functions	Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display	LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power Supply	1 x Coin type lithium battery (CR2032), Continuous use 25 hours
Measurement Categories	A: CAT III 600V V: CAT III 300V, CAT II 600V
Core Jaw Diameter	Ø 1.38" (35 mm)
Dimensions	2.24 x 7.09 x 0.63" (57 x 180 x 16 mm)
Weight	6 oz (170 g)
