"Our job is helping you do your job"

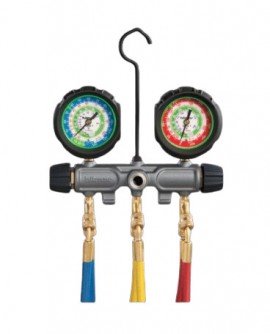

With the rough and durability of the 4-valve, with the simplicity of a 2-valve design, this aluminum manifold has a durable design and smart functionality.
With the rough and durability of the 4-valve, with the simplicity of a 2-valve design, this aluminum manifold has a durable design and smart functionality.
Features
| Temperature | F° |
| Pressure Range | Low: -30" HG to 300 to 500 psi High: 0 to 800 psi |
| Accuracy | Class 1 - 1% Accuracy (full scale) |
| Gauge Connection Type | 1/8" (0.32 cm) NPT Male Fitting |
| Valve Type | Double O-ring Piston Style |
| Valve Seat (Orifice) | Replaceable Stainless Steel (SAE-style straight thread with O-ring) |
| Sight Glass | Bonded Steel with SAE-style straight thread with O-ring |
| Charge Ports | 1/4" (0.64 cm) (quantity 3) |
| Dimensions | 8.88 x 1.75 x 7.13" (22.56 x 4.45 x 18.11 cm) |
| Weight | 2.45 lbs (1.1 kg) |
| Temperature | F° |
| Pressure Range | Low: -30" HG to 300 to 500 psi High: 0 to 800 psi |
| Accuracy | Class 1 - 1% Accuracy (full scale) |
| Gauge Connection Type | 1/8" (0.32 cm) NPT Male Fitting |
| Valve Type | Double O-ring Piston Style |
| Valve Seat (Orifice) | Replaceable Stainless Steel (SAE-style straight thread with O-ring) |
| Sight Glass | Bonded Steel with SAE-style straight thread with O-ring |
| Charge Ports | 1/4" (0.64 cm) (quantity 3) |
| Dimensions | 8.88 x 1.75 x 7.13" (22.56 x 4.45 x 18.11 cm) |
| Weight | 2.45 lbs (1.1 kg) |
