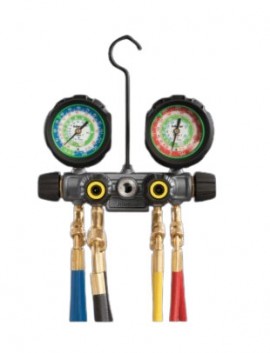

Hilmor 1839111 4-Valve Aluminum Manifold for R410A refrigerant, without hoses

Downloads: datasheet

This 4-valve aluminum manifold has rubberized handles for quick and painless turns, and front-mounted hose positions giving easier access.

Features

Extra confidence: built to last with a forged aluminum body. Designed to be leak-resistant with replaceable stainless steel valve seats, SAE-style O-rings and a securely seated, large sight glass
Quick on the job: get faster vacuum pulls with a true 3/8" (0.95 cm) bore throughout the valve
Comfortable grip: a rubberized handle makes it easier to use in wet and dirty environments
Glows in the dark: light-activated paint illuminates, so you won’t be left in the dark
Built-in pressure reminder: a pressure reminder allows you to set the pressure ring and reference it later

Temperature	F°/C°
Pressure Range	Low: -30" HG to 300 to 500 psi High: 0 to 800 psi
Accuracy	Class 1 - 1% Accuracy (full scale)
Gauge Connection Type	1/8" (0.32 cm) NPT Male Fitting
Valve Type	Double O-ring Piston Style
Valve Seat (Orifice)	Replaceable Stainless Steel (SAE-style straight thread with O-ring)
Sight Glass	Bonded Steel with SAE-style straight thread with O-ring
Vacuum Port	3/8" (0.95 cm) full bore (quantity 1)
Charge Ports	1/4" (0.64 cm) (quantity 3)
Dimensions	8.88 x 4 x 7.13" (22.56 x 10.16 x 18.11 cm)
Weight	3.4 lbs (1.5 kg)

datasheet for the Hilmor 1839111 4-Valve Aluminum Manifold for R410A refrigerant, without hoses
