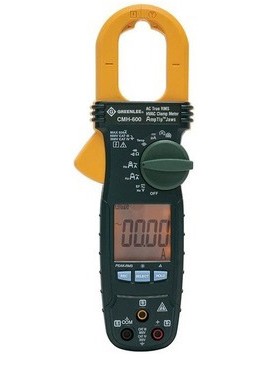

Greenlee CMH-600 HVAC/R AC True RMS Clamp Meter, 600 A

Model: CMH-600 | UPC: 783310022091

Greenlee CMH-600 HVAC/R AC True RMS Clamp Meter, 600 A

Model: CMH-600 | UPC: 783310022091

This AC current clamp meter comes with test leads and a carrying case. The AmpTip™ is compatible with small wires and low currents.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Greenlee CM-450 Digital Clamp-On Meter, 600 A AC

Model: CM-450

Measure amperage, voltage, frequency and resistance with this meter. It has a digital display with data hold.

Learn More

Greenlee CMH-600 Offers

The Greenlee CMH-600 HVAC/R AC True RMS Clamp Meter is a versatile tool to have in your kit. It can measure AC current, DC voltage, resistance, capacitance, temperature and frequency, and is equipped with advanced features to help increase accuracy and convenience. The backlit LCD allows you to see in most conditions.

Features

For measuring AC current, DC micro-amperes, DC voltage, resistance, capacitance, temperature and frequency
Digital low pass filter increases the accuracy on variable frequency drives
AmpTip™ makes measurements on small wires and low currents more accurate
Does phase sequence and motor rotation tests and tests continuity and diodes
Voltage detection modes include non-contact and single test lead
Peak-RMS measures motor inrush current
Records minimum, maximum and average readings
Backlit LCD
Relative mode
Data hold function

Greenlee CMH-600 Specifications

Amperage	60, 600 A AC
Display	Backlit LCD (6,000 count)
Frequency	Voltage and AmpTip™: 50/60 Hz; high current: 50 to 400 Hz
Jaw Opening	1.18" (30 mm)
Category	CAT III 600 V; CAT IV 300 V
Resistance	600, 6k, 60k Ω
True Power	AC true RMS
Voltage	600 V AC/DC
Standard	CAT III, C/US UL listed, CE
Manufacturer Warranty	Lifetime

What's included with the Greenlee CMH-600

Meter
Test Leads and Clips
2 x 1.5 V AAA Batteries
Carrying Case

Description ➕➖

Greenlee CMH-600 Offers

Features

For measuring AC current, DC micro-amperes, DC voltage, resistance, capacitance, temperature and frequency
Digital low pass filter increases the accuracy on variable frequency drives
AmpTip™ makes measurements on small wires and low currents more accurate
Does phase sequence and motor rotation tests and tests continuity and diodes
Voltage detection modes include non-contact and single test lead
Peak-RMS measures motor inrush current
Records minimum, maximum and average readings
Backlit LCD
Relative mode
Data hold function

Specifications ➕➖

Greenlee CMH-600 Specifications

Amperage	60, 600 A AC
Display	Backlit LCD (6,000 count)
Frequency	Voltage and AmpTip™: 50/60 Hz; high current: 50 to 400 Hz
Jaw Opening	1.18" (30 mm)
Category	CAT III 600 V; CAT IV 300 V
Resistance	600, 6k, 60k Ω
True Power	AC true RMS
Voltage	600 V AC/DC
Standard	CAT III, C/US UL listed, CE
Manufacturer Warranty	Lifetime

Included ➕➖

What's included with the Greenlee CMH-600

Meter
Test Leads and Clips
2 x 1.5 V AAA Batteries
Carrying Case
