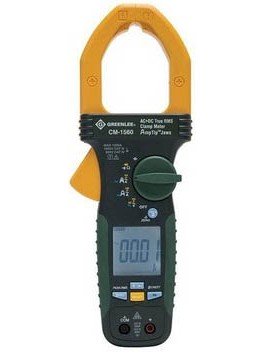

Greenlee CM-1560-C Calibrated AC/DC Clamp Meter, 1,000 A

Model: CM-1560-C | UPC: 783310022190

Greenlee CM-1560-C Calibrated AC/DC Clamp Meter, 1,000 A

Model: CM-1560-C | UPC: 783310022190

Use this meter to measure both AC and DC current, as well as AC and DC voltage. It features a convenient clamp design.

Sale Price	$432.50 USD
Regular Price	$533.95 USD
Availability	1 to 2 Weeks2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your CM-1560-C Calibrated AC/DC Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIGM2) for only $125.00 USD

Traceable Calibration Certificate for your CM-1560-C Calibrated AC/DC Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIGM2) for only $125.00 USD

Greenlee CM-1560-C Offers

The Greenlee CM-1560-C Calibrated AC/DC Clamp Meter makes it easy to monitor all your electrical systems. Not only is it designed for maximum accuracy, but it's also equipped for both AC and DC measurements. Plus, the meter also comes with 2 voltage detection modes, a built-in flashlight and a backlit LCD to help make your job easier.

Features

Calibrated clamp meter for measuring AC/DC current, AC/DC voltage, resistance, capacitance and frequency
Tests continuity and diodes
Digital low pass filter provides accurate readings on variable frequency drives
AmpTip™ increases the accuracy of readings on small wires and low currents
2 voltage detection modes: non-contact and using a single test lead
Clamp with built-in flashlight makes it easy to get set up in most environments
Measures motor inrush current and captures current/voltage peaks as short as 5 milliseconds
Records MIN/MAX and average readings
Backlight and relative mode
Data hold

Greenlee CM-1560-C Specifications

Amperage	60, 600, 1,000 A AC/DC
Voltage	600, 1,000 VAC/VDC
Resistance	600, 6k, 60k Ω
Frequency	Voltage: 50/60 Hz; current: 40 to 400 Hz
Measurement Category	CAT III 1,000 V; CAT IV 600 V
Standard	CAT IV, C/US UL listed, CE
True Power	AC/DC true RMS
Jaw opening	2" (51 mm)
Display	LCD (6,000 count)
Manufacturer Warranty	Lifetime

What's included with the Greenlee CM-1560-C

Clamp Meter
Test Leads
Certificate of Calibration
Carrying Case
2 x 1.5 V AA Batteries

Description ➕➖

Greenlee CM-1560-C Offers

Features

Calibrated clamp meter for measuring AC/DC current, AC/DC voltage, resistance, capacitance and frequency
Tests continuity and diodes
Digital low pass filter provides accurate readings on variable frequency drives
AmpTip™ increases the accuracy of readings on small wires and low currents
2 voltage detection modes: non-contact and using a single test lead
Clamp with built-in flashlight makes it easy to get set up in most environments
Measures motor inrush current and captures current/voltage peaks as short as 5 milliseconds
Records MIN/MAX and average readings
Backlight and relative mode
Data hold

Specifications ➕➖

Greenlee CM-1560-C Specifications

Amperage	60, 600, 1,000 A AC/DC
Voltage	600, 1,000 VAC/VDC
Resistance	600, 6k, 60k Ω
Frequency	Voltage: 50/60 Hz; current: 40 to 400 Hz
Measurement Category	CAT III 1,000 V; CAT IV 600 V
Standard	CAT IV, C/US UL listed, CE
True Power	AC/DC true RMS
Jaw opening	2" (51 mm)
Display	LCD (6,000 count)
Manufacturer Warranty	Lifetime

Included ➕➖

What's included with the Greenlee CM-1560-C

Clamp Meter
Test Leads
Certificate of Calibration
Carrying Case
2 x 1.5 V AA Batteries
