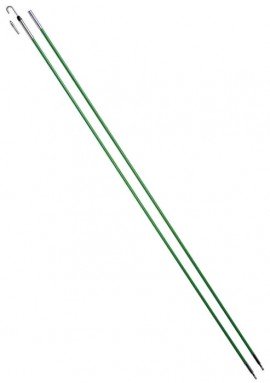

Greenlee 540-24 Fish Stix Kit, 1/4" x 24'

Model: 540-24 | UPC: 783310105060

Greenlee 540-24 Fish Stix Kit, 1/4" x 24'

Model: 540-24 | UPC: 783310105060

Features highly visible green fiberglass rods that can be easily threaded together and seen when working above ceilings, down walls, or under raised floors, while also adding rigidity when connecting multiple sections. Designed with 200 pounds of pulling strength that is 24' overall in length.

Features highly visible green fiberglass rods that can be easily threaded together and seen when working above ceilings, down walls, or under raised floors, while also adding rigidity when connecting multiple sections. Designed with 200 pounds of pulling strength that is 24' overall in length.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Fish Tools and Tapes category for similar products.

Or let's do a search and help you find what you need:


Greenlee 540-24 Offers

Features

  • Highly visible green color rods can be easily threaded together and seen when working above ceilings, down walls, or under raised floors
  • 1/4" (6.4 mm) diameter fiberglass adds rigidity when connecting multiple sections
  • 200 lbs (0.9 kN) maximum pulling strength
  • Two different threaded tips accommodate various bundles of wire or cable
  • Includes one 3 IN (0.9 mm) Glo Stix section for improved tip visibility
  • Optional Whisk Nose Tip is available for fishing over obstacles, and can be used to guide extended Glo Stix sideways above ceilings by rotating. Can also be used to fish longer lengths by providing a tip that can be snagged from the opposite direction with another extended Fish or Glo Stix with a hook nose tip.

Greenlee 540-24 Specifications

Tensile Strength 200 lbs (0.9 KN) Maximum Pulling Strength
Color Green
Minimum Bend Radius 6-1/2" (165 mm)
Diameter 1/4" (6.4 mm)
Length 24 ft (7.3 m)
Sections 5
Section Length (3) 6 ft (1.8 m), (1) 3 ft (0.9 m) and (1) 3 ft (0.9 m) Glo Stix Section
Sub Brand Fish Stix/td>
Replacement Parts Fish Stix Section1583 1/4" X 4'; 11584 1/4" X 6'
Glo Stix Section: 12920 3/16" X 20'; 11585 3/16" x 3'; 11427 3/16" x 5'; 12922 5/32" X 4'; 89803 5/32" X 6'
Weight 1.94 lbs (0.9 kg)
Click here for complete specifications on the Greenlee 540-24

What's included with the Greenlee 540-24

  • 3 x 6' Fish Stix
  • 3' Fish Stix
  • Glo Stix
  • Bullet
  • "J" Hook Nose Tip

Greenlee 540-24 Offers

Features

  • Highly visible green color rods can be easily threaded together and seen when working above ceilings, down walls, or under raised floors
  • 1/4" (6.4 mm) diameter fiberglass adds rigidity when connecting multiple sections
  • 200 lbs (0.9 kN) maximum pulling strength
  • Two different threaded tips accommodate various bundles of wire or cable
  • Includes one 3 IN (0.9 mm) Glo Stix section for improved tip visibility
  • Optional Whisk Nose Tip is available for fishing over obstacles, and can be used to guide extended Glo Stix sideways above ceilings by rotating. Can also be used to fish longer lengths by providing a tip that can be snagged from the opposite direction with another extended Fish or Glo Stix with a hook nose tip.

Greenlee 540-24 Specifications

Tensile Strength 200 lbs (0.9 KN) Maximum Pulling Strength
Color Green
Minimum Bend Radius 6-1/2" (165 mm)
Diameter 1/4" (6.4 mm)
Length 24 ft (7.3 m)
Sections 5
Section Length (3) 6 ft (1.8 m), (1) 3 ft (0.9 m) and (1) 3 ft (0.9 m) Glo Stix Section
Sub Brand Fish Stix/td>
Replacement Parts Fish Stix Section1583 1/4" X 4'; 11584 1/4" X 6'
Glo Stix Section: 12920 3/16" X 20'; 11585 3/16" x 3'; 11427 3/16" x 5'; 12922 5/32" X 4'; 89803 5/32" X 6'
Weight 1.94 lbs (0.9 kg)
Click here for complete specifications on the Greenlee 540-24

What's included with the Greenlee 540-24

  • 3 x 6' Fish Stix
  • 3' Fish Stix
  • Glo Stix
  • Bullet
  • "J" Hook Nose Tip
