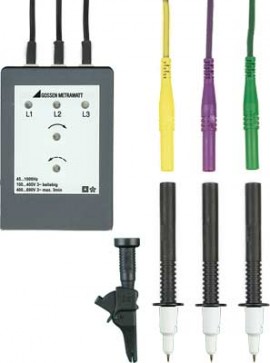

Three phase sequence indicator with light-emitting diodes which indicates whether or not the phase conductor is live. Includes leads, contact-protected plugs, probes and alligator clip.
Three phase sequence indicator with light-emitting diodes which indicates whether or not the phase conductor is live. Includes leads, contact-protected plugs, probes and alligator clip.
Features
| Nominal Voltage Range | 100 to 230/400 V 400 to 690 V / 3~< 3 min |
| Nominal Frequency Range | 45 to 1000 Hz |
| Nominal Insulation Voltage | 250 V to ground |
| Test Voltage | 3 kV |
| Protection Class | II (protection inuslation) |
| Measuring Category | 600 V CAT III |
| Protection Type | IP 50 |
| Plastic Case | UL 94 - V 0 |
| Dimensions | 70 x 105 x 38.5 mm |
| Weight | 0.3 kg |
Click on a category to view a selection of compatible accessories with the Gossen Metrawatt PhaseCop 2 Phase Sequence Indicator.
