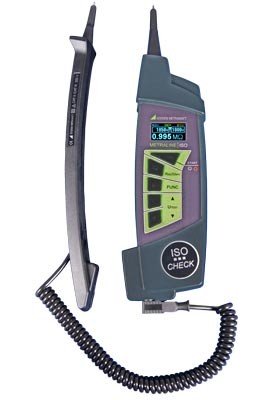

Gossen Metrawatt Metraline ISO-Check Insulation Tester, 50-1000 V

Model: METRALINE ISOCHECK | Order No: M507C

This tester allows you to measure insulation resistance with test voltages of 50 to 1000 V, and a measuring range of 100 kΩ through 1 GΩ.

This tester allows you to measure insulation resistance with test voltages of 50 to 1000 V, and a measuring range of 100 kΩ through 1 GΩ.

Sale Price	$815.16 USD
Regular Price	$849.13 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your M507C Gossen Metrawatt Metraline ISO-Check Insulation Tester

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIIN1) for only $135.00 USD

Traceable Calibration Certificate for your M507C Gossen Metrawatt Metraline ISO-Check Insulation Tester

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIIN1) for only $135.00 USD

Recommended Accessories

Gossen Metrawatt Z507A Battery Charger, 180 mA-

Gossen Metrawatt Z507A Battery Charger, 180 mA

Gossen Metrawatt Z507B Rechargeable Batteries, Pack of 4-

Gossen Metrawatt Z507B Rechargeable Batteries, Pack of 4

Gossen Metrawatt METRALINE ISOCHECK Offers

Features

Insulation resistance measurement with test voltages of 50 to 1000 V
Voltage measurement up to 600 V
Measurement of surge protection devices with test voltages of 50 to 1000 V
Table of common varistors can be displayed
Digital display, backlit color OLED display
Indication of dangerous touch voltage
LED for measurement point illumination
Patented means of securing test probes
Compact and rugged: For service calls under harsh conditions and laboratory use

Applications

Measurement of insulation resistance at voltage-free devices and systems, up to 1000 V depending upon variant
Measurement of surge protection devices, up to 1000 V depending upon variant
Checking of test objects for absence of voltage

Gossen Metrawatt METRALINE ISOCHECK Specifications

Operating Temperature	0 to 40°C
Relative Humidity	max. 85%, no condensation allowed
Power Supply	4 ea. AAA (LR03), 1.5 V alkaline or 1.2V NIMH (with at least 750 mAh)
Display	OLED, multicolored, graphic
Dimensions	approx. 260 x 70 x 40 mm
Weight	approx. 0.36 kg with batteries
Protection	Housing: IP43

Click here for complete specifications on the Gossen Metrawatt METRALINE ISOCHECK

What's included with the Gossen Metrawatt METRALINE ISOCHECK

Tester
Factory Calibrated Certificate
Probes
4 x Batteries
CD ROM
Operating Instructions
