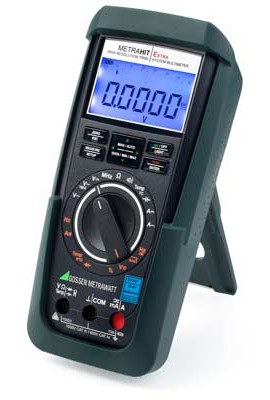

Gossen Metrawatt M250A METRAHit EXTRA True RMS Digital Multimeter with data memory

Model: M250A

Gossen Metrawatt M250A METRAHit EXTRA True RMS Digital Multimeter with data memory-

Downloads: datasheet manual

More Gossen Metrawatt Products

Ask an Expert

Gossen Metrawatt M250A METRAHit EXTRA True RMS Digital Multimeter with data memory

Model: M250A

Features 26 multimeter functions and a data logger function with 2048kB memory capacity.

Features 26 multimeter functions and a data logger function with 2048kB memory capacity.

Your Price $1071.41 USD
Availability 3 to 4 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your M250A METRAHit EXTRA True RMS Digital Multimeter with data memory

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your M250A METRAHit EXTRA True RMS Digital Multimeter with data memory

Recommended Accessories

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software-

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software

GTZ3240000R0001

Gossen Metrawatt Z115A HitBag Multimeter Travel Bag-

Gossen Metrawatt Z115A HitBag Multimeter Travel Bag

Z115A

Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC-

Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC

Z202B

Gossen Metrawatt Z203B CP1100 AC/DC Current Sensor Clamp, 0.5 to 100, 5 to 1000 A/DC, 10 mV/A, 1 mV/A AC/DC-

Gossen Metrawatt Z203B CP1100 AC/DC Current Sensor Clamp, 0.5 to 100, 5 to 1000 A/DC, 10 mV/A, 1 mV/A AC/DC

Z203B

Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters-

Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters

Z216A

Gossen Metrawatt M250A Offers

Features

  • 26 multimeter functions
  • Data logger function with 2048kB memory capacity, i.e. for up to 61,600 measured values
  • Infrared interface to PC for data exchange and parameters configuration (optional: IR-USB adapter and METRAwin10 software)
  • Power pack connector socket for operation without batteries
  • True RMS AC and AC+DC voltage measurement, bandwidths of up to 100kHz
  • True RMS AC and AC+DC current measurement, bandwidths of up to 10kHz
  • dB measuring function
  • Adjustable clamp factor for measurement with current clamp sensors and transformers

Applications

Ideal for the following applications: Field Service, Electrical Engineering, Energy Management, Control Systems.

Gossen Metrawatt M250A Specifications

Maximum Voltage AC 1000V
Maximum Voltage DC 1000V
Resolution DC Volts 10µV (0.01mV)
Counts 60000 Counts
CAT Voltage 1000V, 600V
Click here for complete specifications on the Gossen Metrawatt M250A

What's included with the Gossen Metrawatt M250A

  • M250A Digital Multimeter
  • HC20 Hard Case
  • Pair of Safety Measurement Cables (1.5m) with 4mm test probes, 1000V CAT III, 600V CAT IV (KS17-2)
  • Protective Rubber Holster
  • Batteries
  • Operating Instructions
  • DAkkS Calibration Certificate
datasheet for the Gossen Metrawatt M250A METRAHit EXTRA True RMS Digital Multimeter with data memory manual for the Gossen Metrawatt M250A METRAHit EXTRA True RMS Digital Multimeter with data memory

Click on a category to view a selection of compatible accessories with the Gossen Metrawatt M250A METRAHit EXTRA True RMS Digital Multimeter with data memory.

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software GTZ3240000R0001
Any METRAHit multimeter can be transformed into a professional, PC-based universal recording system with METRAwin 10 software, and an interface adapter.



Gossen Metrawatt Z115A HitBag Multimeter Travel Bag Z115A
Cordura belt bag for the METRAHit series of multimeters.



Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC Z202B
This current sensor is a high-performance instrument for the measurement of inverters, switched-mode power supply units, industrial control systems and other applications which require current measurement or waveform analysis.



Gossen Metrawatt Z203B CP1100 AC/DC Current Sensor Clamp, 0.5 to 100, 5 to 1000 A/DC, 10 mV/A, 1 mV/A AC/DC Z203B
This current sensor is a high-performance instrument for the measurement of inverters, switched-mode power supply units, industrial control systems and other applications which require current measurement or waveform analysis.



Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters Z216A
Data is transmitted from the multimeter to the adapter in a electrically isolated, bidirectional fashion, and to the USB interface for PCs and laptops. Snap onto all METRAHit multimeters for use.



Gossen Metrawatt Z216B USB-PACK Interface Adapter for METRAHit Multimeters with software Z216B
Data is transmitted from the multimeter to the adapter in a electrically isolated, bidirectional fashion, and to the USB interface for PCs and laptops. Snap onto all METRAHit multimeters for use.



Gossen Metrawatt M250A Offers

Features

  • 26 multimeter functions
  • Data logger function with 2048kB memory capacity, i.e. for up to 61,600 measured values
  • Infrared interface to PC for data exchange and parameters configuration (optional: IR-USB adapter and METRAwin10 software)
  • Power pack connector socket for operation without batteries
  • True RMS AC and AC+DC voltage measurement, bandwidths of up to 100kHz
  • True RMS AC and AC+DC current measurement, bandwidths of up to 10kHz
  • dB measuring function
  • Adjustable clamp factor for measurement with current clamp sensors and transformers

Applications

Ideal for the following applications: Field Service, Electrical Engineering, Energy Management, Control Systems.

Show More...

Gossen Metrawatt M250A Specifications

Maximum Voltage AC 1000V
Maximum Voltage DC 1000V
Resolution DC Volts 10µV (0.01mV)
Counts 60000 Counts
CAT Voltage 1000V, 600V
Click here for complete specifications on the Gossen Metrawatt M250A

What's included with the Gossen Metrawatt M250A

  • M250A Digital Multimeter
  • HC20 Hard Case
  • Pair of Safety Measurement Cables (1.5m) with 4mm test probes, 1000V CAT III, 600V CAT IV (KS17-2)
  • Protective Rubber Holster
  • Batteries
  • Operating Instructions
  • DAkkS Calibration Certificate
