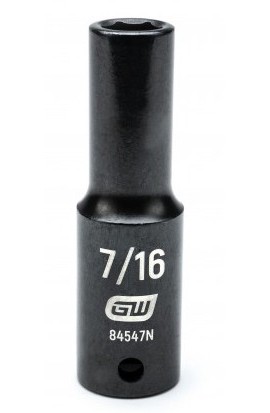

Provide high-visibility laser-etched markings, this 6-point deep impact SAE socket has a black oxide finish to repel corrosion with a fastener size of 7⁄16".
Provide high-visibility laser-etched markings, this 6-point deep impact SAE socket has a black oxide finish to repel corrosion with a fastener size of 7⁄16".
The 6-point deep impact ½" drive SAE socket 7/16" meets or exceeds ASME specifications.
Features
| Overall Length | 3.228" |
| SAE/Metric/Torx | SAE |
| ASME Specification | B107.2 |
| Fastener Size | 7/16" |
| Drive Type | 6 Point |
| Drive Tang Size | ½" |
| Length Format | Deep |
| Dim. A: Drive End | 0.957" |
| Dim. C: Overall Length | 3.228" |
| Dim. F: Length to Shoulder | 1.614" |
| Dim. D: Bolt Clearance | 0.425" |
| Dim. E: Wrench Depth | 0.551" |
| Dim. B: Wrench End | 0.728" |
| Finish | Black Oxide |
| Material | Chrome Molybdenum Alloy (Cr-Mo) |
| Weight | 0.36 lb |
| Overall Length | 3.228" |
| SAE/Metric/Torx | SAE |
| ASME Specification | B107.2 |
| Fastener Size | 7/16" |
| Drive Type | 6 Point |
| Drive Tang Size | ½" |
| Length Format | Deep |
| Dim. A: Drive End | 0.957" |
| Dim. C: Overall Length | 3.228" |
| Dim. F: Length to Shoulder | 1.614" |
| Dim. D: Bolt Clearance | 0.425" |
| Dim. E: Wrench Depth | 0.551" |
| Dim. B: Wrench End | 0.728" |
| Finish | Black Oxide |
| Material | Chrome Molybdenum Alloy (Cr-Mo) |
| Weight | 0.36 lb |
