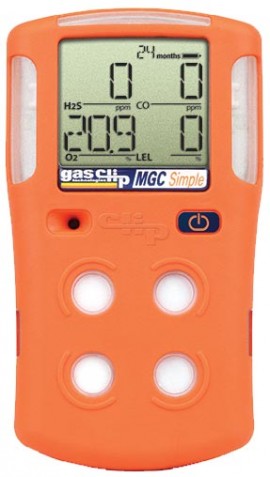

Gas Clip MGC-S Multi-Gas Detector, H₂S/CO/O₂/LEL, two-year

Model: MGC-S

Gas Clip MGC-S Multi-Gas Detector, H<sub>2</sub>S/CO/O<sub>2</sub>/LEL, two-year-

Downloads: datasheet manual

Gas Clip MGC-S Multi-Gas Detector, H₂S/CO/O₂/LEL, two-year

Model: MGC-S

Lightweight and durable, this multi-gas detector detects combustible gases (LEL), hydrogen sulfide (H₂S), carbon monoxide (CO), and oxygen (O₂). In addition, this detector operates for two years continuously with no recharging and features a simple one-button operation and a large, easy-to-read screen.

Sale Price	$578.15 USD
Regular Price	$746.00 USD
Availability	17 in Stock
Quantity	Quantity

Traceable Calibration Certificate for your MGC-S Multi-Gas Detector

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIGM2) for only $125.00 USD

Traceable Calibration Certificate for your MGC-S Multi-Gas Detector

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIGM2) for only $125.00 USD

Recommended Accessories

Gas Clip GCT-CSK-GAS Confined Space Kit with gas for the MGC series

GCT-CSK-GAS

Gas Clip MGC-S-DOCK MGC Simple Dock Station

MGC-S-DOCK

Gas Clip MGC-S-WMDOCK MGC Simple Wall Mount Dock

MGC-S-WMDOCK

Gas Clip GCT-CSK Confined Space Kit for the MGC series

GCT-CSK

Gas Clip GCT-HAK Hand Aspirator Kit - 1' sampling probe, air stone particulate filter, sampling hose, hand aspirator pump & calibration cap

GCT-HAK

Gas Clip MGC-S External Dust Filter Kit

MGC-S-XFILTER-KIT

Gas Clip MGC-S Offers

Features

Detects combustible gases (LEL), hydrogen sulfide (H₂S), carbon monoxide (CO) and oxygen (O₂)
Runs for 2 years continuously with no charging
Routine calibrations not necessary (saves test gas and downtime)
Infrared LEL sensor does not require oxygen to detect gas
Low maintenance cost - infrared LEL sensor is immune to poisons
Simple one-button operation and large, easy-to-read screen
IP68 ingress protection
Lightweight & durable - alligator clip clamps on tight

Gas Clip MGC-S Specifications

Gases	H₂S: 0 - 100 PPM (0.1 PPM increments) CO: 0 - 500 PPM (1 PPM increments) Combustible (LEL): 0 - 100% LEL (0.1% increments) O₂: 0 - 30% vol. (0.1% increments)
Alarms	Visual, vibrating & audible (minimum 95 dB) Low, High, STEL, TWA & OL (Over Limit)
LEDs	4 Red alarm bar LEDs Yellow back-light (activated on button press) Red back-light (activated on alarm condition) Yellow Maintenance Notification LED
Display	High viewing angle alphanumeric Liquid Crystal Display (LCD)
Logs	50 Bump tests 50 Events 50 Calibrations Continuous 1 second data logging (typical capacity >2 months)
Tests	Full function self-test upon activation Sensors, battery and circuitry tests run continuously
Ingress Protection	IP 68
Battery Life	730 days continuous (based on an average of 1 minute of alarm per day)
Humidity	5% to 95% RH (non-condensing)
Temperature	-4 to 122°F (-20 to 50°C)
Sensor Type	H₂S, CO and O₂: Plug-in electrochemical cell Combustible (LEL): Soldered infrared (IR)
Certifications and Approvals	CSA: CSA16.70084100 Intrinsically safe Class I, Division 1, Groups A, B, C and D, T4 Ex ia IIC T4 Ga Class I, Zone 0, AEx ia IIC T4 Ga -20°C ≤ Ta ≤ +50°C C22.2 No. 152-M1984 ANSI/ISA 12.13.01-2000 IECEx: IECEx CSA 16.0038 II 1 G Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +50°C IEC 60079-0:2011 Edition: 6.0 IEC 60079-11:2011 Edition: 6.0 ATEX: SIRA 16ATEX2288 II 1 G Ex ia IIC T4 Ga EN 60079-0:2012/A11:2013 EN 60079-11:2012
Dimensions	4.75 x 2.75 x 1.25" (120.65 x 69.85 x 31.75 mm)
Weight	7.675 oz (220.2 g)
Warranty	2 years

Click here for complete specifications on the Gas Clip MGC-S

What's included with the Gas Clip MGC-S

Multi-Gas Detector
Calibration Cap
Quick Start Guide
Certificate of Calibration

Getting to know the Gas Clip MGC Series Multi Gas Clip Simple

"Get a brief overview of the key features of the MGC Simple gas clip. Here are a few: 1. Never needs to be charged 2. Never needs to be calibrated (unless required) 3. Detects gases in inert environments 4. LEL sensor immune to poisoning"

datasheet for the Gas Clip MGC-S Multi-Gas Detector, H₂S/CO/O₂/LEL, two-year manual for the Gas Clip MGC-S Multi-Gas Detector, H₂S/CO/O₂/LEL, two-year

Click on a category to view a selection of compatible accessories with the Gas Clip MGC-S Multi-Gas Detector, H₂S/CO/O₂/LEL, two-year.

Confined Space Kits

Gas Clip GCT-CSK-GAS Confined Space Kit with gas for the MGC series GCT-CSK-GAS

Compatible with the MGC, -S, and -S-PLUS multi-gas detectors, this kit includes a 58L quad gas cylinder, sampling probe, air stone particulate filter, sampling hose, hand aspirator pump, calibration/test hose with Quick Disconnect, calibration caps, 0.5 lpm regulator, communication module with USB cable, and hard carrying case with foam insert.

Gas Clip GCT-CSK Confined Space Kit for the MGC series GCT-CSK

Compatible with the MGC, -S, and -S-PLUS multi-gas detectors, this kit includes a sampling probe, air stone particulate filter, sampling hose, hand aspirator pump, calibration/test hose with Quick Disconnect, calibration caps, 0.5 lpm regulator, communication module with USB cable, and hard carrying case with foam insert.

Docking Stations

Gas Clip MGC-S-DOCK MGC Simple Dock Station MGC-S-DOCK

Accurately test up to four units at the same time, all data is simultaneously logged. The portable unit is protected with a durable case and the integrated USB memory can record all the data from the monitors while reducing testing time and gas usage.

Gas Clip MGC-S-WMDOCK MGC Simple Wall Mount Dock MGC-S-WMDOCK

Accurately test up to four units at the same time, all data is simultaneously logged. The mountable unit has an integrated USB memory and can record all the data from the monitors while reducing testing time and gas usage.

Accessory Kits

Gas Clip GCT-HAK Hand Aspirator Kit - 1' sampling probe, air stone particulate filter, sampling hose, hand aspirator pump & calibration cap GCT-HAK

Includes a Sampling Probe, Air Stone Filter, Calibration Cap and Sampling Hose. For use with all MGC multigas monitor models excluding pump models.

Gas Clip MGC-S External Dust Filter Kit MGC-S-XFILTER-KIT

Includes External Filter Cap and 5 Filters.

Description ➕➖

Gas Clip MGC-S Offers

Features

Detects combustible gases (LEL), hydrogen sulfide (H₂S), carbon monoxide (CO) and oxygen (O₂)
Runs for 2 years continuously with no charging
Routine calibrations not necessary (saves test gas and downtime)
Infrared LEL sensor does not require oxygen to detect gas
Low maintenance cost - infrared LEL sensor is immune to poisons
Simple one-button operation and large, easy-to-read screen
IP68 ingress protection
Lightweight & durable - alligator clip clamps on tight

Specifications ➕➖

Gas Clip MGC-S Specifications

Gases	H₂S: 0 - 100 PPM (0.1 PPM increments) CO: 0 - 500 PPM (1 PPM increments) Combustible (LEL): 0 - 100% LEL (0.1% increments) O₂: 0 - 30% vol. (0.1% increments)
Alarms	Visual, vibrating & audible (minimum 95 dB) Low, High, STEL, TWA & OL (Over Limit)
LEDs	4 Red alarm bar LEDs Yellow back-light (activated on button press) Red back-light (activated on alarm condition) Yellow Maintenance Notification LED
Display	High viewing angle alphanumeric Liquid Crystal Display (LCD)
Logs	50 Bump tests 50 Events 50 Calibrations Continuous 1 second data logging (typical capacity >2 months)
Tests	Full function self-test upon activation Sensors, battery and circuitry tests run continuously
Ingress Protection	IP 68
Battery Life	730 days continuous (based on an average of 1 minute of alarm per day)
Humidity	5% to 95% RH (non-condensing)
Temperature	-4 to 122°F (-20 to 50°C)
Sensor Type	H₂S, CO and O₂: Plug-in electrochemical cell Combustible (LEL): Soldered infrared (IR)
Certifications and Approvals	CSA: CSA16.70084100 Intrinsically safe Class I, Division 1, Groups A, B, C and D, T4 Ex ia IIC T4 Ga Class I, Zone 0, AEx ia IIC T4 Ga -20°C ≤ Ta ≤ +50°C C22.2 No. 152-M1984 ANSI/ISA 12.13.01-2000 IECEx: IECEx CSA 16.0038 II 1 G Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +50°C IEC 60079-0:2011 Edition: 6.0 IEC 60079-11:2011 Edition: 6.0 ATEX: SIRA 16ATEX2288 II 1 G Ex ia IIC T4 Ga EN 60079-0:2012/A11:2013 EN 60079-11:2012
Dimensions	4.75 x 2.75 x 1.25" (120.65 x 69.85 x 31.75 mm)
Weight	7.675 oz (220.2 g)
Warranty	2 years
