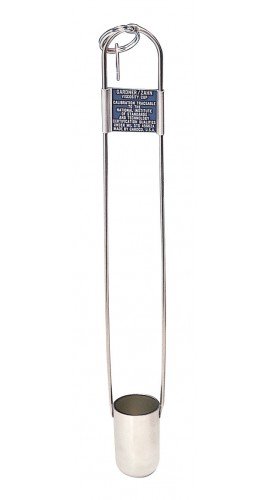

GARDCO VI-2103 Viscosity Cup No. 3, 13-60 sec

Model: VI-2103

Downloads: datasheet

GARDCO VI-2103 Viscosity Cup No. 3, 13-60 sec

Model: VI-2103

Zahn Viscosity Cups determine the flow time of paints, coatings, enamels, oils and other similar liquids. A twelve inch looped stainless steel handle allows the cup to be dipped by hand into a liquid container.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Baker B3300 Viscosity Cup No. 3, 20 to 75 seconds

Model: B3300

Stainless steel cup with precision-drilled orifice used to determine the consistency of paints, coatings, enamels, oils and other similar liquids.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

GARDCO VI-2103 Offers

Features

A conically shaped steel cup delivers 44 cc's of liquid sample through a precision orifice
At the top of this handle is a stainless steel split key ring for aligning the cup in a true vertical position when conducting tests
To conduct a test, measure and record the temperature of the material that is encompassed by the cup. At the same that the cup is withdrawn from the material, start a timing device. Carefully observe the efflux stream and at the first distinct break in the stream near the base of the cup stop the timing device. Record the number of seconds of efflux, including the cup type and number

Applications

The Number Three and Four Zahn Cups are used for higher solids application where extra heavy films are desired.

GARDCO VI-2103 Specifications

Capacity	44 cc's
Inside Height	2.233"
Inside Diameter	1.292"
Wall Thickness	0.03125"
Total Weight	100 g
Orifice Size	0.146"
Range	13-60 sec

Click here for complete specifications on the GARDCO VI-2103

What's included with the GARDCO VI-2103

GARDCO VI-2103 Viscosity Cup No. 3, 13-60 sec

datasheet for the GARDCO VI-2103 Viscosity Cup No. 3, 13-60 sec

Description ➕➖

GARDCO VI-2103 Offers

Features

A conically shaped steel cup delivers 44 cc's of liquid sample through a precision orifice
At the top of this handle is a stainless steel split key ring for aligning the cup in a true vertical position when conducting tests
To conduct a test, measure and record the temperature of the material that is encompassed by the cup. At the same that the cup is withdrawn from the material, start a timing device. Carefully observe the efflux stream and at the first distinct break in the stream near the base of the cup stop the timing device. Record the number of seconds of efflux, including the cup type and number

Applications

The Number Three and Four Zahn Cups are used for higher solids application where extra heavy films are desired.
