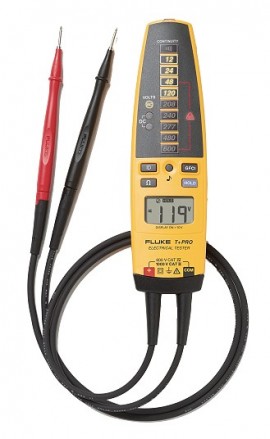

Fluke T+Pro Electrical Tester

Model: TPLUSPRO | Order No: T+PRO | UPC: 095969327923

Fluke T+Pro Electrical Tester-

Downloads: datasheet manual

More Fluke Products

Ask an Expert

Fluke T+Pro Electrical Tester

Model: TPLUSPRO | Order No: T+PRO | UPC: 095969327923

Helps electricians and technicians work safer by indicating the presence of voltage even when the batteries are dead due to its solid-state design. Additional functionality such as a GFCI trip, easy to read LCD screen, resistance measurement up to 9.99 kOhms and a flashlight.

Helps electricians and technicians work safer by indicating the presence of voltage even when the batteries are dead due to its solid-state design. Additional functionality such as a GFCI trip, easy to read LCD screen, resistance measurement up to 9.99 kOhms and a flashlight.

Sale Price $137.74 USD
Regular Price $169.00 USD
Availability 1 Week
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your T+PRO Electrical Tester

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your T+PRO Electrical Tester

Recommended Accessories

Fluke TP2 Slim Reach Test Probe Set-

Fluke TP2 Slim Reach Test Probe Set

TP2

Fluke TPLUSPRO Offers

Features

  • Extra heavy-duty, replaceable test leads for more flexibility and durability
  • CAT IV 600 V, CAT III 1000 V rated for added user protection
  • Continuity beeper
  • Bright LED flashlight for work in poorly lit areas
  • GFCI Trip
  • On/Off switchable beeper, selectable according to your environment
  • Compliant with latest NFPA 70E recommendations*
  • Replaceable test probes for added flexibility and convenience
  • Convenient probe storage on the back
  • Probe holder for easier testing
  • Hazardous voltage warning light for added user protection
  • Test lead strap included for better test lead management
  • AC/DC Voltage: 12 V 600 V on LED bar, 10.2 V 600 V on LCD (LCD on T+PRO only)
  • Auto-off saves battery power
  • Rotary field indicator for troubleshooting three-phase systems, resistance measurement to 9.99 KOhms, as well as a backlit LCD display for easier viewing

Fluke TPLUSPRO Specifications

Temperature
Operating -10°C to 55°C (14°F to 131°F)
Storage -30°C to 60°C (-22°F to 140°F)
Relative Humidity
90% 0°C to 30°C (32°F to 86°F)
75% 30°C to 40°C (86°F to 104°F)
45% 40°C to 50°C (104°F to 122°F)
Altitude
Operating 2,000 m (approx. 6,561.6 ft)
Storage 10,000 m (approx. 32,808.4 ft)
Functional Specifications
Battery Type/Life AAA (x 2); 40 hours
Shock, Vibration Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument
AC Bandwidth 45 Hz to 66 Hz
Maximum Working Voltage 1000 V AC/DC
Maximum Measurable Voltage 600 V AC/DC
General Specifications
Dimensions 1.3 x 2.15 x 7.6" (3.3 x 5.46 x 19.3cm)
Weight 9.9oz (0.28kg)
Safety ISA-82.02.01 (IEC 61010-1 Mod) Second Edition,
CAN/CSA-C22.2 No. 61010-1 Second Edition,
IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV; Compliance to NFPA 70E*
Click here for complete specifications on the Fluke TPLUSPRO

What's included with the Fluke TPLUSPRO

  • Electrical Tester
  • Test Lead Wrap
  • TP2 Test Probes
  • User Manual
