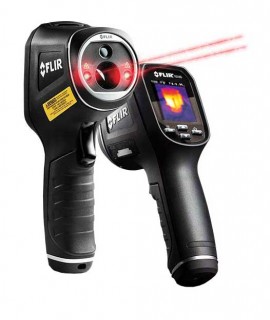

Equipped with FLIR's Lepton® micro thermal sensor, this 50° x 38.6° FOV camera lets you see the heat so you know exactly where to target the measurement spot. Designed for indoor electrical inspection, it helps you easily find unseen hot and cold spots for instant troubleshooting and stores images and data to show customers and include in reports. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Equipped with FLIR's Lepton® micro thermal sensor, this 50° x 38.6° FOV camera lets you see the heat so you know exactly where to target the measurement spot. Designed for indoor electrical inspection, it helps you easily find unseen hot and cold spots for instant troubleshooting and stores images and data to show customers and include in reports. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Wide field of view, intuitive to operate, rugged and reliable.
Features
Applications
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| IR Resolution | 80 × 60 pixels |
| Laser | Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger |
| Spectral Range | 8 to 14 µm |
| Humidity (Operating and Storage) | 0 to 90% RH 32 to 98.6°F (0 to 37°C), 0 to 65% RH 98.6 to 113°F (37 to 45°C), 0 to 45% RH 113 to 131°F (45 to 55°C) |
| Camera Size (L x W x H) | 7.3 x 2.2 x 3.7" (186 x 55 x 94 mm) |
| Field of View (FOV) | 50° x 38.6° |
| Accuracy | ±1.5% or 2.7°F (1.5°C) |
| Battery Type | Rechargeable Li ion battery |
| Image Storage Capacity | 75,000 pictures with included 8 GB MicroSD card |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| IR Resolution | 80 × 60 pixels |
| Laser | Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger |
| Spectral Range | 8 to 14 µm |
| Humidity (Operating and Storage) | 0 to 90% RH 32 to 98.6°F (0 to 37°C), 0 to 65% RH 98.6 to 113°F (37 to 45°C), 0 to 45% RH 113 to 131°F (45 to 55°C) |
| Camera Size (L x W x H) | 7.3 x 2.2 x 3.7" (186 x 55 x 94 mm) |
| Field of View (FOV) | 50° x 38.6° |
| Accuracy | ±1.5% or 2.7°F (1.5°C) |
| Battery Type | Rechargeable Li ion battery |
| Image Storage Capacity | 75,000 pictures with included 8 GB MicroSD card |
