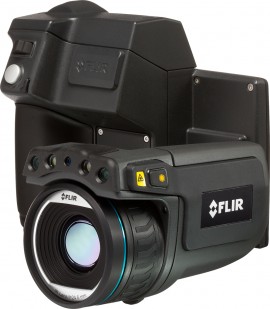

FLIR T640BX Thermal Imaging Camera, 307200 Pixels (640 x 480)

Model: T640BX | UPC: 845188007409

Downloads: datasheet manual

FLIR T640BX Thermal Imaging Camera, 307200 Pixels (640 x 480)

Model: T640BX | UPC: 845188007409

For industrial/commercial building applications. Features a 640 x 480 30Hz infrared detector, UltraMax, WiFi, 0.035°C thermal sensitivity, and a -40 to 650°C (-40 to 1202°F) temperature measurement range.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

FLIR T865-14 Thermal Imaging Camera with 14° lens, 640 x 480

Model: T865-14

Safely assess the condition of electrical and mechanical equipment with this thermal imaging camera that features a 640 x 480 resolution and an object temperature range of -40 to 3632°F (40 to 2000°C). Complete with a 14° lens, this ergonomically designed camera features a viewfinder and a 180° rotating lens platform.

Learn More

Recommended Accessories

FLIR T197914 Infrared Lens, 15°

T197914

FLIR T198060 Close-up Lens with Case For FLIR T6xx Series, 5.8x

T198060

FLIR T198166 Infrared Lens for the T630 SC and T650SC, 7°

T198166

FLIR ITC Level 1 Thermography Training

ITC Level I

FLIR T910814 Power Supply with Multi Plugs for the T4XX, T6XX, and EXX

T910814

FLIR T640BX Offers

The FLIR T640 is one of the most extensive and advanced thermal imaging cameras available with several convenient features such as a tillable lens, wi-fi connectivity and much more.

Features

NEW UltraMax - allows you to generate reports with images that have four times as many pixels, and 50% less noise, so you'll be able to zoom in on smaller targets and measure them more accurately than ever.
Its infrared resolution is the highest of its class, at 640 X 480 pixels it offers greater accuracy and readability from greater distances
A thermal sensitivity of <40mK to enable quick and accurate imaging of targets
An optimized temperature range of -40°C to +150°C (-40°F to +302°F); +100°C to +650°C (+212°F to +1202°F); or +300°C to +2000°C (+572°F to +3632°F)
New higher resolution digital camera with a 5 megapixel detector and LED lamps
A large 4.3" LCD touch screen with efficient on-screen report
Wi-Fi connectivity allows to send data to smart phones and tablets and now even personal computers
More measurement tools allow for a total of 10 measurement spots and 5 box areas
And ergonomic tilting lens that allows a 120° rotation for more comfortable operation
Bluetooth communication lets your link and store moisture and clamp meter reading wirelessly to your camera
Thermal fusion and picture-in-picture allow you to see both visible images and infrared thermal images side by side, or blended as one for better depictions
Capable of creating MPEG4 non-radiometric infrared or daylight video recording
Realtime video frame rate
Capable of streaming MPEG4 videos over Wi-Fi

Applications

Ideal for detecting the following:

Electrical malfunctions such as hot fuses
Internal winding problems in motors
Bearing problems in motors
Heat loss in buildings

FLIR T640BX Specifications

IR Resolution (Array Size)	640 x 480
Thermal Sensitivity	<0.035°C
Field of View	25° - 19°
Temperature Range	-40°C to 650°C (-40°F to 1202°F)
Accuracy	±2% or 2°C
Measurement Modes	5 modes:10 Spots, 5 Area Boxes/Circles,
Frame Refresh	Isotherm, Auto hot/cold spot, Δ T
Thermal Palettes	12: Arctic, Gray, Iron, Lava, Rainbow, and Rainbow High Contrast (plus all inverted)
Focus	Manual and Automatic
Display Screen	4.3"/Landscape (Widescreen)
Touchscreen	Yes
Visual Camera	5MP
Digital Zoom	8x
Image Fusion	Yes
Memory Storage	2 GB SD memory card
Video Output	Yes
Insulation Alarm	Yes
Dewpoint Alarm	Yes
LED Illuminator	Yes
Laser Pointer	Yes
Video Recording	Yes
Annotations	Yes
Wireless Meter Connect	Yes
Wi-Fi Connectivity	Yes

Click here for complete specifications on the FLIR T640BX

What's included with the FLIR T640BX

Thermal Imaging Camera
SD Memory Card
AC Adaptor/Charger
2 x Li-Ion Rechargeable Battery
2-Bay Battery Charger
Power Supply
Tools Software
USB Cable
Video Cable
Bluetooth Headset
Lens Cap
NeckStrap
Hard Carrying Case
