Monitor and safeguard critical equipment through this vibration and temperature monitoring sensor that analyzes vibrations in rotating machinery for fault detection and timely alerts for potential defects. In addition, this sensor features 10 Hz to 5 kHz, X/Y/Z axis, fully remote wireless capabilities, and is rated IP66.
Monitor and safeguard critical equipment through this vibration and temperature monitoring sensor that analyzes vibrations in rotating machinery for fault detection and timely alerts for potential defects. In addition, this sensor features 10 Hz to 5 kHz, X/Y/Z axis, fully remote wireless capabilities, and is rated IP66.

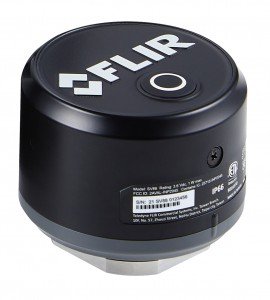

The FLIR SV88™ vibration and temperature sensor helps you monitor critical equipment by continuously analyzing vibrations from rotating equipment, detecting faults, and alerting you to potential defects and future problems. With it’s Multi-communication protocols, rugged, IP66 rating and wireless capability, this sensor allows you to make critical data-driven decisions that alert you to potential issues to aid in extending the life of your valuable assets.
Features
Applications
| Measurement and Analysis | Sensitivity range: ±16 g Frequency range: 10 Hz to 5 kHz Temperature range: Display measurement trend of contact temperature -4 to 176°F (-20 to 80°C) Capture rate configurable: 1 minute (minutes) ~ 1 day (maximum) Output data: 5 KHz, X/Y/Z axis: 19,200 raw data Vibration analysis data: GRMS, VRMS (ISO10816), peak, crest factor, kurtosis, skewness, standard deviation, FFT Memory: 1 MB flash |
| Connections and Communications | Wi-Fi type: IEEE 802.11n Range (during a session): Up to 160' (50 m), line of sight Communication protocol: TCP socket Mounting: Bolt/screw (1/4” (6.35 mm) × 28 UNF) or magnetic mount (sold separately) |
| Certifications | ETL/FCC/IC/CE/UKCA/RCM |
| Environmental Conditions | Operating temperature range: -4 to 149°F (-20 to 80°C) Storage temperature range: -4 to 149°F (-20 to 80°C) Relative humidity: 10 to 95% relative humidity, non-condensing |
| Operating altitude | 6562' (2000 m) |
| Drop test | 3' (1 m) |
| IP rating | IP66 |
| Power | Battery type: LS17500 3.6 V 3600 mAh Li battery (replaceable) Battery life: Minimum 2 years subject to sampling rate and installation environments LED indicators: Low battery LED |
| Dimensions | 1.14 x 0.98 x 0.55" (29 x 25 x 14 mm) |
| Weight | 6.6 oz (187 g) |
Click on a category to view a selection of compatible accessories with the FLIR SV88™ Remote Vibration and Temperature Monitoring Sensor with 3 axis, 10 Hz to 5 kHz.
