"Our job is helping you do your job"
This kit comes with the DJI M210 V2 Industrial Drone with enhanced intelligent control systems, flight performance, add flight safety and data security features, and the Zenmuse XT2 with FLIR's industry-leading thermal imaging technology. It features an FPA/digital video display format of 640 x 512 and 13 mm thermal lens.
This kit comes with the DJI M210 V2 Industrial Drone with enhanced intelligent control systems, flight performance, add flight safety and data security features, and the Zenmuse XT2 with FLIR's industry-leading thermal imaging technology. It features an FPA/digital video display format of 640 x 512 and 13 mm thermal lens.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
Build to Endure. Engineered to Adapt.
The Matrice™ 210 V2 (M210 V2) is a powerful industrial drone platform with world-class agility and speed, redundant barometers and IMUs for maximum reliability, and smart flight features that make capturing complex shots easy. The aircraft's visual sensors* enable enhanced hovering precision even when flying indoors or in environments where GNSS is unavailable, while the built-in AirSense makes you aware of nearby aircraft in the surrounding airspace to ensure safety. Its airframe design gives it an IP43 Ingress Protection, in accordance with the global IEC 60529 standard, and the mechanical design, along with quick-release landing gears and mounted folding arms, makes it easy to transport, store, and prepare for flight. The safety beacons on both the top and the bottom of the aircraft allow the aircraft to be identified at night or in low light conditions. An advanced power management system along with dual batteries ensures power supply and enhances flight safety. Without a payload, the M200 V2 has a flight time of up to 38 minutes with standard batteries (TB55).
*NOTE: The Vision and Infrared Sensing Systems are affected by surrounding conditions.
Features
Applications
With IP43 level ingress rated weather and water resistant protection and operating temperature* from -4 to 122°F (-20 to 50°C), the Matrices 210 Series V2 is build to endure adverse environments.
Self-heating Battery - The TB55 Intelligent flight battery supports self-heating feature. The battery will automatically warm up after power on if it is installed into the aircraft. After takeoff the self- heating function will turn off automatically.
Aircraft Center - gravity Point Calibration - When multiple payloads or third-party payloads are installed, users can readjust the drone's center of gravity in the DJI Pilot app, enhancing flight stability and safety.
*NOTE: Extreme temperature condition may affect the flight time.
The Matrice 210 Series V2 has an advanced obstacle avoidance system, a downward vision system for precise hovering and landing, dual front vision sensors capable of detecting obstacles up to 30 meters ahead, and an upward facing infrared sensor which can avoid obstacles within five meters. In terms of software, the Matrice 210 Series V2 provides a variety of intelligent flight modes.
Spotlight mode aids pilots by tracking the desired object without the need for a gimbal operator.
Enable Discreet Mode for missions that require an unobtrusive flight, especially during the night time, all lights can be completely turned off in the DJI Pilot app.
Experience exceptional flight performance with the OcuSync 2.0, which supports automatic dual frequency band switching between 2.4 and 5.8 GHz*. This ensures a more reliable and stable flight, and enhanced video transmission of up to 5 miles (8 km) with FHD video resolution stream.
*NOTE: Due to local policies, some countries may not support 5.8 GHz transmission.
Matrice 210 Series V2 supports varieties of gimbals for different using scenarios. The aircraft flight time may be affected due to different weights of the payloads and various weather conditions.
Designed with U.S. Federal Aviation Administration 3 nautical mile night-time waiver standards in mind, anti-collision beacons have been added on the top and bottom of the Matrice 210 Series V2 to improve flight safety during low-light conditions and at night*.
*NOTE: Please consult local policies and regulations before performing nighttime and BVLOS (beyond visual line of sight) operations.
The Matrice 210 Series V2 supports one-click upgrade using the DJI Assistant 2 for Matrice software and the DJI Pilot app. These components can now be upgraded simultaneously with one-click:
The Matrice 210 Series V2 features DJI AirSense technology, a built-in ADS-B receiver, enhancing airspace safety by automatically providing the operator with real-time information about the position, altitude, and velocity of nearby manned aircraft equipped with ADS-B transmitters.
AirSense enables safer and more efficient use of airspace, particularly in locations where other manned aircraft may be operating.
*NOTE: AirSense system can only receive messages sent by manned aircraft installed with an ADS-B out device and in accordance with 1090ES (RTCA DO-260) or UAT (RTCA Do-282) standards. DJI devices will not receive related broadcast messages or send out warnings for manned aircraft without ADS-B outs or with malfunctioning ADS-B outs.
DJI FlightHub software enables organizations to efficiently manage all aspects of their commercial drone operations from a single platform. As a web-based service, FlightHub Basic and Advanced have provided the capability to oversee live operations, manage flight data, manage fleets and pilots, and effectively plan operations.
Users can integrate the Matrice 210 Series V2 with DJI FlightHub along with their existing fleet of drones to help optimize operational efficiencies across their fleet. Direct tie-in to DJI Pilot app allows pilots to stream real-time video or captured imagery to their enterprises' FlightHub system.
FlightHub Enterprise Compatible
FlightHub Enterprise has additional features that give commercial operators more control over their implementations and data security:
Download the App
| Matrice 210 V2 | |
| Operating Frequency | 2.4000 to 2.4835 GHz; 5.725 to 5.850 GHz |
| EIRP | 2.4 GHz: ≤26 dBm (NCC/FCC); ≤20 dBm (CE/MIC); ≤20 dBm (SRRC) 5.8 GHz: ≤26 dBm (NCC/FCC); ≤14 dBm (CE); ≤26 dBm (SRRC) |
| Hovering Accuracy (P-mode with GPS) | Vertical: ±1.64' (±0.5 m) or ±0.33' (±0.1 m, Downward Vision System enabled) Horizontal: ±4.92' (±1.5 m) or ±0.98' (±0.3 m, Downward Vision System enabled) |
| Angular Velocity | Pitch: 300°/s, Yaw: 120°/s |
| Pitch Angle | Dual downward gimbal/single upward gimbal: S-mode: 30°; P-mode: 30° (Forward Vision System enabled: 25°); A-mode: 30° Single downward gimbal (gimbal connector I): S-mode: 35°; P-mode: 30° (Forward Vision System enabled: 25°); A-mode: 30° |
| Ascent Speed | 16.4 ft/s (5 m/s) maximum |
| Descent Speed (Vertical) | 9.8 ft/s (3 m/s) maximum |
| Max Speed | Dual downward gimbal/single upward gimbal: S-mode/A-mode: 45.9 mph (73.8 kph); P-mode: 38 mph (61.2 kph) Single downward gimbal (gimbal connector I): S-mode/A-mode: 50.3 mph (81 kph); P-mode: 38 mph (61.2 kph) |
| Max Service Ceiling Above Sea Level | 9842' (3000 m, with 1760S propellers) |
| Max Wind Resistance | 39.4 ft/s (12 m/s) |
| Max Flight Time (with two TB55 batteries) | 34 min (no payload), 24 min (takeoff weight: 6.14 kg) |
| Dimensions | Unfolded, propellers and landing gears included, 34.7 x 34.8 x 15.6" (883 x 886 x 398 mm) Folded, propellers and landing gears excluded, 28.4 x 11.1 x 9.5" (722 x 282 x 242 mm) |
| Weight | Approx. 10.6 lbs (4.8 kg) with two TB55 batteries |
| Zenmuse XT2 | |
| FPA & Digital Video Display Format | 640 x 512 |
| Exportable Frame Rate | <9 Hz |
| Pixel Pitch | 17 μm |
| Scene Range | High gain: -13 to 275°F (-25 to 135°C) Low gain: -40 to 1022°F (-40 to 550°C) |
| Spectral Band | 7.5 to 13.5 μm |
| Thermal Imager | Uncooled VOx Microbolometer |
| Full Frame Rate | 30 Hz |
| Dimensions | 4.64 x 4.39 x 4.94" (118.02 x 111.6 x 125.5 mm) |
To create radiometric sequences

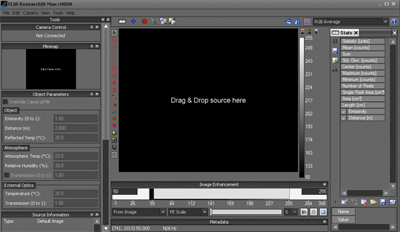

Drag & Drop

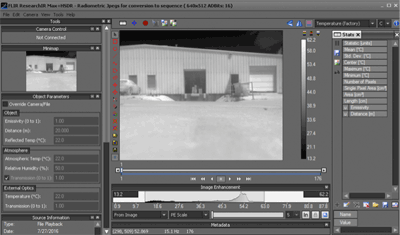

Playback, review, analyse images within ResearchIR Max

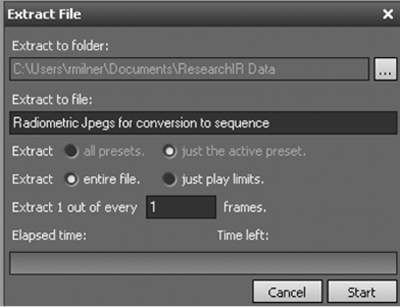

Select the Extract command under the File menu

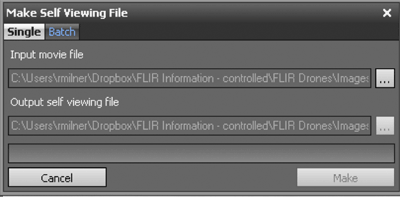

To create a Self viewing file
Click on a category to view a selection of compatible accessories with the FLIR Matrice M210 V2 Industrial Aerial Kit with Zenmuse XT2, 640 x 512, 13 mm.
