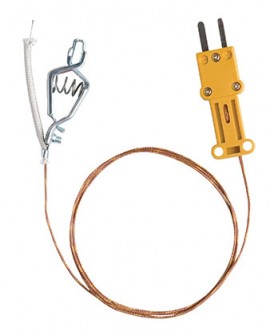

The ATAF1, Type-K thermocouple clips to HVAC/R equipment for convenient placement and hands-free testing. Fiberglass insulation withstands high temperatures up to 900°F. In addition, the ATAF1 can be used with any Fieldpiece meters that measure temperature and any thermometer accepting a Type-K thermocouple.
The ATAF1, Type-K thermocouple clips to HVAC/R equipment for convenient placement and hands-free testing. Fiberglass insulation withstands high temperatures up to 900°F. In addition, the ATAF1 can be used with any Fieldpiece meters that measure temperature and any thermometer accepting a Type-K thermocouple.
The convenient alligator clip is a great time saver when data logging or anytime an extra hand is needed. Great for meters with a 1000°F range. The wrap tab allows the thermocouple wire to conveniently store on the plug. Just wrap the excess wire around the wrap-tab. No more tangles.
Furthermore, clip it to residential and commercial ovens, broilers, boilers, or any other high-temperature application. You can also clip it to condenser fins when finding target superheat, evaporator filters, or hard-to-reach supply vents.
| Accuracy | ±4°F (2°C) ±1°F(0.5°C) after field calibration 32 to 176°F (0 to 80°C) |
| Temperature Range | -50 to 900°F (-46 to 482°C) |
| Thermocouple Conductors | Type-K nickel chromium/nickel aluminum |
| Probe Insulation | Calibration and atmosphere will affect maximum useful temperature in applications. The wire insulation is designed to withstand a maximum continuous use at 900°F (482°C). |
| Plug Type | Type-K thermocouple male mini plug |
| Accuracy | ±4°F (2°C) ±1°F(0.5°C) after field calibration 32 to 176°F (0 to 80°C) |
| Temperature Range | -50 to 900°F (-46 to 482°C) |
| Thermocouple Conductors | Type-K nickel chromium/nickel aluminum |
| Probe Insulation | Calibration and atmosphere will affect maximum useful temperature in applications. The wire insulation is designed to withstand a maximum continuous use at 900°F (482°C). |
| Plug Type | Type-K thermocouple male mini plug |
