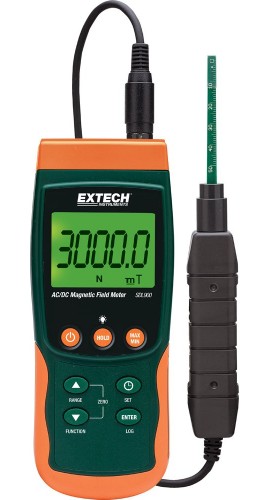

The AC/DC magnetic meter/data logger with automatic temperature compensation measures and data logs both AC and DC magnetitic field in Gauss and mT (milli Tesla) with a uniaxial Hall effect sensor and built-in ATC. It features an adjustable data sampling rate from 1 to 3600 seconds. Internal memory stores up to 99 readings and an included SD memory card as additional storage.
The AC/DC magnetic meter/data logger with automatic temperature compensation measures and data logs both AC and DC magnetitic field in Gauss and mT (milli Tesla) with a uniaxial Hall effect sensor and built-in ATC. It features an adjustable data sampling rate from 1 to 3600 seconds. Internal memory stores up to 99 readings and an included SD memory card as additional storage.
The AC/DC magnetic meter/data logger with automatic temperature compensation readings can easily be exported to an Excel format.
Features
Applications
| DC milli Tesla Range | 300.00 mT 3000.0 mT |
| DC milli Tesla Max Resolution | 0.01 mT 0.1 mT |
| DC milli Tesla Basic Accuracy | ±(5% + 10 d) ±(5% + 10 d) |
| DC Gauss Range | 3000.0 G 30,000 G |
| DC Gauss Max Resolution | 0.1 G 1 G |
| DC Gauss Basic Accuracy | ±(5% + 10 d) ±(5% + 10 d) |
| AC milli Tesla Range | 150.00 mT 1500.0 mT |
| AC milli Tesla Max Resolution | 0.01 mT 0.1 mT |
| AC milli Tesla Basic Accuracy | ±(5% + 20d) ±(5% + 20d) |
| AC Gauss Range | 1500.0 G 15,000 G |
| AC Gauss Max Resolution | 0.1 G 1 G |
| AC Gauss Basic Accuracy | ±(5% + 20d) ±(5% + 20d) |
| Number of Axis | Uniaxial |
| AC Bandwidth | 50 Hz/60 Hz |
| Sampling Rate | 1 to 3600 seconds |
| Dimensions/Weight | 7.1 x 2.9 x 1.9" (182 x 73 x 48 mm)/ 10.7 oz (303 g) |
| DC milli Tesla Range | 300.00 mT 3000.0 mT |
| DC milli Tesla Max Resolution | 0.01 mT 0.1 mT |
| DC milli Tesla Basic Accuracy | ±(5% + 10 d) ±(5% + 10 d) |
| DC Gauss Range | 3000.0 G 30,000 G |
| DC Gauss Max Resolution | 0.1 G 1 G |
| DC Gauss Basic Accuracy | ±(5% + 10 d) ±(5% + 10 d) |
| AC milli Tesla Range | 150.00 mT 1500.0 mT |
| AC milli Tesla Max Resolution | 0.01 mT 0.1 mT |
| AC milli Tesla Basic Accuracy | ±(5% + 20d) ±(5% + 20d) |
| AC Gauss Range | 1500.0 G 15,000 G |
| AC Gauss Max Resolution | 0.1 G 1 G |
| AC Gauss Basic Accuracy | ±(5% + 20d) ±(5% + 20d) |
| Number of Axis | Uniaxial |
| AC Bandwidth | 50 Hz/60 Hz |
| Sampling Rate | 1 to 3600 seconds |
| Dimensions/Weight | 7.1 x 2.9 x 1.9" (182 x 73 x 48 mm)/ 10.7 oz (303 g) |
