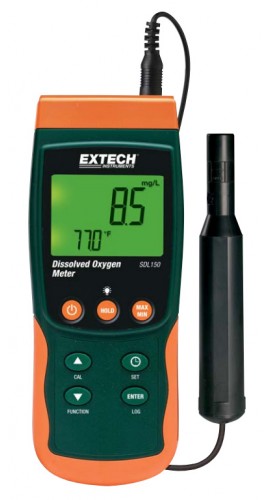

Extech SDL150 Dissolved Oxygen Meter/Data Logger

Downloads: datasheet

Features a dual display of dissolved oxygen concentration and temperature. Records data with real date and time stamp to an SD card in Excel format.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Model: DO210

Compact handheld meter takes quick measurements of dissolved oxygen or % oxygen plus temperature in water.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Features

Dual backlit display of Oxygen Concentration and Temperature
Measures dissolved oxygen from 0 to 20.0mg/L and 0 to 100.0% oxygen plus temperature from 32 to 122°F (0 to 50°C)
Automatic Temperature Compensation from 0 to 50°C via temperature probe sensor built into polarographic type oxygen probe
Offset adjustment used for zero function to make relative measurements
Stores 99 readings manually and 20M readings via 2G SD card
User programmable sampling rate
Built-in PC interface
Min/Max and Data Hold functions, Auto power off

Applications

	Dissolved Oxygen	Oxygen	Temperature
pH Range	0 to 20.0 mg/L	0 to 100.0%	32 to 122°F (0 to 50°C)
Accuracy	±0.4 mg/L	±0.7%	±0.8°C/1.5°F
Probe Compensation & Adjustment	Salt: 0 to 50%	Altitude: 0 to 8910m	Temp: 0 to 50°C
Dimensions/Weight	7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm) / 25.6oz(725g) (meter only) Probe: 28mm(1.1")D x 190mm(7.5")L

datasheet for the Extech SDL150 Dissolved Oxygen Meter/Data Logger

Features

Dual backlit display of Oxygen Concentration and Temperature
Measures dissolved oxygen from 0 to 20.0mg/L and 0 to 100.0% oxygen plus temperature from 32 to 122°F (0 to 50°C)
Automatic Temperature Compensation from 0 to 50°C via temperature probe sensor built into polarographic type oxygen probe
Offset adjustment used for zero function to make relative measurements
Stores 99 readings manually and 20M readings via 2G SD card
User programmable sampling rate
Built-in PC interface
Min/Max and Data Hold functions, Auto power off

Applications

	Dissolved Oxygen	Oxygen	Temperature
pH Range	0 to 20.0 mg/L	0 to 100.0%	32 to 122°F (0 to 50°C)
Accuracy	±0.4 mg/L	±0.7%	±0.8°C/1.5°F
Probe Compensation & Adjustment	Salt: 0 to 50%	Altitude: 0 to 8910m	Temp: 0 to 50°C
Dimensions/Weight	7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm) / 25.6oz(725g) (meter only) Probe: 28mm(1.1")D x 190mm(7.5")L
