Extech RH550 Humidity/Temperature Chart Recorder with touchscreen

Model: RH550 | UPC: 793950441602

Downloads: datasheet manual

Extech RH550 Humidity/Temperature Chart Recorder with touchscreen

Model: RH550 | UPC: 793950441602

Simultaneously data log and monitor relative humidity, temperature, and calculated dew point with this chart recorder. Features live or user-scheduled recording time and programmable Min/Max alarm set points, along with a built-in stand for desktop use, as well as a bracket for wall-mounting.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Digital Recorders category for similar products.

Or let's do a search and help you find what you need:

Extech RH550 Offers

Features

Large 7" (178 mm) high-resolution color TFT LCD (1024 x 600 pixels) with display zoom feature, interactive touch-screen menu, and screen capture capability with finger swipe
Simultaneous numerical and graphical display of realtime humidity, temperature and dew point readings, plus time and date in live mode
Internal 16 GB memory for capturing up to 20,000 data points in CSV format that can be transferred to a computer via USB port
User selectable 1 second to 24 hour sampling rate
Audible and visual alarm with Hi/Low set points
View recorded alarm values by date sorting or by temperature and humidity values
Memory progress bar indicates used memory and percentage of free memory remaining
Recall saved data files using history mode
MIN/MAX records minimum and maximum values for all 3 units of measure
Field-replaceable probe does not require recalibration
Probe can either be clipped directly onto the tablet or attached to a cable to extend up to ~6.5' (2 m) for measurements in closed environments
Up to three probe cables can be connected together
Desktop or wall mount

Applications

Buildings and conference rooms
Laboratory
Pharmaceutical
Cleanrooms
Hospitals
Hydroponics
Green houses
Food storage facilities
Refrigeration

Extech RH550 Specifications

Relative Humidity
Range	10 to 95% RH
Maximum Resolution	0.1% RH
Basic Accuracy	±2.5% RH
Temperature
Range	Sensor directly attached to tablet: 14 to 104°F (-10 to 40°C) Sensor attached to cable: -4 to 176°F (-20 to 80°C)
Maximum Resolution	0.1°
Basic Accuracy	±0.9°F (±0.5°C)
Dew Point (Calculated)
Range	-4 to 176°F (-20 to 80°C)
Maximum Resolution	0.1°
General Specifications
Internal Memory Storage	16 GB
Sample Rate	1 sec to 24 hrs
Extension Cable	Connect up to 3 cables
Dimensions	Tablet: 7.8 x 4.6 x 1" (198 x 118 x 25.7 mm) Viewable Screen: 7" (178 mm) Probe: 3.1 x 0.6 x 0.4" (79 × 15.8 × 10 mm) Cable: ~6.5' (197 cm) cable length; ~6.9' (210 cm) cable length and two end connectors
Weight	Tablet: 12.9 oz (365 g) Tablet with probe and cable: 15 oz (425 g)

Click here for complete specifications on the Extech RH550

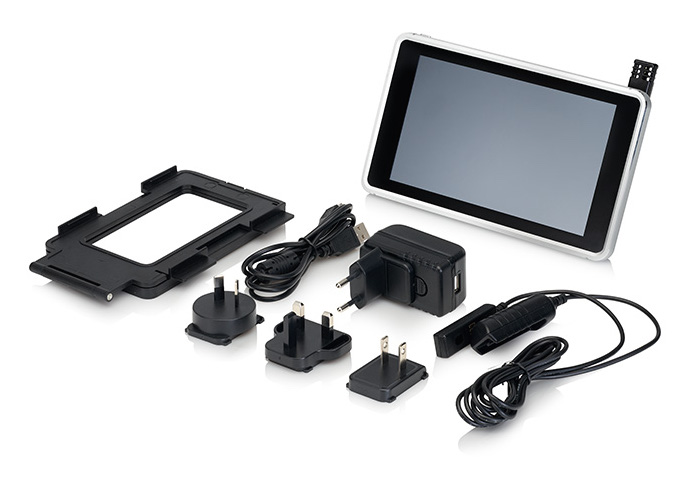

What's included with the Extech RH550

Chart Recorder
Detachable Probe
Probe Cable
USB Cable
Universal Adaptor with Multi-Plugs (US, EU, UK, AU)
Wall Mount Bracket
Rechargeable Lithium Polymer Battery
