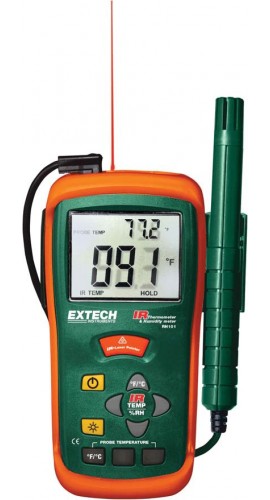

Extech RH101 Hygro-Thermometer and IR Thermometer

Model: RH101 | UPC: 793950441015

Downloads: datasheet manual

Extech RH101 Hygro-Thermometer and IR Thermometer

Model: RH101 | UPC: 793950441015

Takes Humidity, Air Temperature, and non-contact Surface Temperature measurements.

Your Price	$239.00 USD
Availability	2 to 3 Weeks5 to 6 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your RH101 Hygro-Thermometer and IR Thermometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMTF2) for only $350.00 USD

Traceable Calibration Certificate for your RH101 Hygro-Thermometer and IR Thermometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMTF2) for only $350.00 USD

Extech RH101 Offers

Extech RH101 - Hygro-Thermometer + InfraRed Thermometer

Hygro-Thermometer + InfraRed Thermometer

Humidity and Air Temperature measurements

Plus InfraRed Thermometer for non-contact surface Temperature

Key Features:

Combination Humidity meter plus InfraRed Thermometer features a super large backlit dual display
Primary and Secondary displays — Primary display is user selectable for IR or Humidity; Secondary always displays ambient temperature
InfraRed thermometer has built in laser pointer and has an 8:1 distance to target ratio
MAX and Data Hold for all functions
Remote humidity sensor with 39" (1m) coiled cable provides readings for both humidity and ambient temperature
Switchable °C/°F temperature units
Auto Power off to save battery life
Low battery and overrange indication
Complete with built-in stand, protective holster, Humidity/Temperature probe, 9V battery, and carrying case

Extech RH101 Specifications

General Specifications
Display	Dual LCD with Backlight and status indicators
Sensor Type	Humidity: Precision capacitance sensor Temperature: Thermistor (probe) and InfraRed
Response Time	IR Temperature: 0.5 seconds; Probe Temperature and Relative Humidity: 3 minutes
Accuracy note	Accuracy is specified for the following ambient temperature range: 64 to 82°F (18 to 28°C)
Sampling Rate	2.5 samples per second
InfraRed Emissivity	0.95 (fixed)
IR Field of View	D/S = Approx. 8:1 ratio (D = distance S = spot)
Laser power	Less than 1mW
IR Spectral Response	6 to 14 μm (wavelength)
Operating Conditions	32 to 122°F (0 to 50°C); < 80% RH non-condensing
Storage Conditions	14 to 140°F (-10 to 60°C); <80% RH non-condensing
Power Supply	9V Battery with auto power off (after 10 minutes)
Battery Life	Approx. 24 hours (if Backlight and Laser are used continuously the battery life is reduced to 2 to 3 hours approx.)
Dimensions / Weight	5.9 x 2.8 x 1.4" (150 x 72 x 35mm); 8.3 oz. (235g)

Click here for complete specifications on the Extech RH101

What's included with the Extech RH101

Extech RH101 Hygro-Thermometer and IR Thermometer

datasheet for the Extech RH101 Hygro-Thermometer and IR Thermometer manual for the Extech RH101 Hygro-Thermometer and IR Thermometer

Description ➕➖

Extech RH101 Offers

Combination Humidity meter plus InfraRed Thermometer features a super large backlit dual display
Primary and Secondary displays — Primary display is user selectable for IR or Humidity; Secondary always displays ambient temperature
InfraRed thermometer has built in laser pointer and has an 8:1 distance to target ratio
MAX and Data Hold for all functions
Remote humidity sensor with 39" (1m) coiled cable provides readings for both humidity and ambient temperature
Switchable °C/°F temperature units
Auto Power off to save battery life
Low battery and overrange indication
Complete with built-in stand, protective holster, Humidity/Temperature probe, 9V battery, and carrying case

Specifications ➕➖

Extech RH101 Specifications

General Specifications
Display	Dual LCD with Backlight and status indicators
Sensor Type	Humidity: Precision capacitance sensor Temperature: Thermistor (probe) and InfraRed
Response Time	IR Temperature: 0.5 seconds; Probe Temperature and Relative Humidity: 3 minutes
Accuracy note	Accuracy is specified for the following ambient temperature range: 64 to 82°F (18 to 28°C)
Sampling Rate	2.5 samples per second
InfraRed Emissivity	0.95 (fixed)
IR Field of View	D/S = Approx. 8:1 ratio (D = distance S = spot)
Laser power	Less than 1mW
IR Spectral Response	6 to 14 μm (wavelength)
Operating Conditions	32 to 122°F (0 to 50°C); < 80% RH non-condensing
Storage Conditions	14 to 140°F (-10 to 60°C); <80% RH non-condensing
Power Supply	9V Battery with auto power off (after 10 minutes)
Battery Life	Approx. 24 hours (if Backlight and Laser are used continuously the battery life is reduced to 2 to 3 hours approx.)
Dimensions / Weight	5.9 x 2.8 x 1.4" (150 x 72 x 35mm); 8.3 oz. (235g)

Click here for complete specifications on the Extech RH101

Included ➕➖

What's included with the Extech RH101

Extech RH101 Hygro-Thermometer and IR Thermometer

Resources ➕➖

datasheet for the Extech RH101 Hygro-Thermometer and IR Thermometer manual for the Extech RH101 Hygro-Thermometer and IR Thermometer
