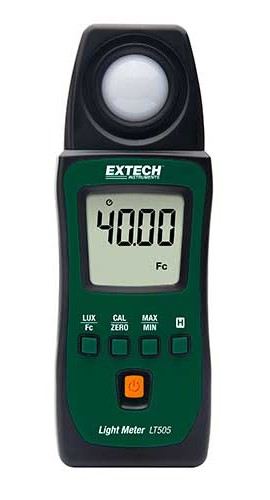

Extech LT505 Pocket Light Meter

Model: LT505 | UPC: 793950475157

Downloads: datasheet manual

Extech LT505 Pocket Light Meter

Model: LT505 | UPC: 793950475157

Features a compact design and auto-ranging light meter that offers wide light intensity ranges measuring up to 40,000Fc (400,000Lux), along with a max resolution of 0.01Fc (0.1Lux).

Your Price	$144.00 USD
Availability	3 Days1 to 2 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your LT505 Pocket Light Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTILM1) for only $305.00 USD

Traceable Calibration Certificate for your LT505 Pocket Light Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTILM1) for only $305.00 USD

Extech LT505 Offers

Features

Measure light levels in Foot-Candle (Fc) or Lux units using a precision photo diode with cosine and color correction filter
Zero/Calibration function
Data Hold and Min/Max functions
Auto power off with disable
Tripod mount (TR100 sold separately)

Applications

Indoor lighting tests
Checking security and safety illumination in:
- Parking garages
- Nighttime ATM areas
- Stairwells
- Landings
- Hallways

Extech LT505 Specifications

Lux
Range	999.9, 9999, 99,990, 400,000Lux
Maximum Resolution	0.1Lux
Basic Accuracy	±3%rdg + 3 digits
Foot-Candle (Fc)
Range	99.99, 999.9, 9999, 40,000Fc
Maximum Resolution	0.01Fc
Basic Accuracy	±3%rdg + 3 digits
General Specifications
Dimensions	5.3 x 1.9 x 0.2" (133 x 48 x 23 mm)
Weight	8.8 oz (250 g) with batteries

Click here for complete specifications on the Extech LT505

What's included with the Extech LT505

Pocket Light Meter
Light Sensor Cover
2 x AAA Batteries
Pouch

datasheet for the Extech LT505 Pocket Light Meter manual for the Extech LT505 Pocket Light Meter
