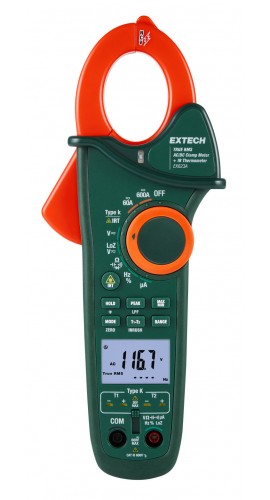

Excellent solution for testing requirements, this True RMS AC/DC clamp meter features dual thermocouple inputs for T1, T2, and T1-T2 differential temperature measurement, being an ideal all-in-one solution for accurate readings. In addition, it includes a built-in infrared thermometer and laser pointer for pinpointing hot spots. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Excellent solution for testing requirements, this True RMS AC/DC clamp meter features dual thermocouple inputs for T1, T2, and T1-T2 differential temperature measurement, being an ideal all-in-one solution for accurate readings. In addition, it includes a built-in infrared thermometer and laser pointer for pinpointing hot spots. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
The EX623A features a Non-Contact Voltage (NCV) detector, which adds a layer of safety. Its DC micro-amp function is ideal for flame rod measurements in HVAC/R systems, and its capacitance measurement capability extends up to 40 mF.
Comes complete with test leads, a 9 V battery, two type K bead wire temperature probes, and a carrying case.
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Features
Applications
| Type | AC/DC |
| True Rms | Yes |
| Display Counts | 6000 |
| Current | AC: 0.01 to 600 A DC: 0.01 to 600 A Basic ACA accuracy: ±(1.5% + 5d) |
| Voltage | AC: 0.1 mv to 600 V DC: 0.1 mv to 600 V |
| µa Current | 0.1 to 600 μA |
| Resistance | 0.1 Ω to 60 MΩ |
| Capacitance | 0.001 nF to 40 mF |
| Frequency | 0.001 Hz to 100 kHz Clamp: 0.1 to 400 Hz |
| Duty Cycle | 0.5 to 99.0% |
| Temperature | Type K: -58 to 1832°F (-50 to 1000°C) Infrared: -58 to 518°F (-50 to 270°C) Operating: 32 to 122°F (0 to 50°C) |
| Distance to Spot Ratio | 8:1 |
| NCV Detector | Yes |
| Peak Hold | Yes |
| Inrush (100 ms) | Yes |
| LoZ | Yes |
| Low Pass Filter | Yes |
| Safety Category | CAT III-600 V |
| Dimensions | 9.4 x 3.7 x 1.74" (241 x 96 x 45 mm) Jaw size: 1.25" (32 mm) |
| Weight | 11.11 oz (315 g) |
