Package with an extension module, current clamps, PQSCADA Sapphire professional, WiFi dongle, and more. Certified to IEC 61000-4-30 Class A 3rd edition. With continuous waveform recording and an App to access all your data from anywhere.
Package with an extension module, current clamps, PQSCADA Sapphire professional, WiFi dongle, and more. Certified to IEC 61000-4-30 Class A 3rd edition. With continuous waveform recording and an App to access all your data from anywhere.

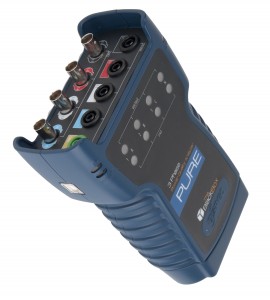

Advanced power quality analyzer embedded with PQZIP Technology, is an easy to use plug and play device that continuously records all power quality parameters without thresholds settings or recording configuration, enabling to detect and analyze the slightest change.
Features
Applications
| Waveform Sampling | |
| Voltage input | 4 channels 100 to 690 V AC Nominal measuring up to 1.5 kV RMS |
| Current Channels | 4 channels Voltage output CTs (0 to 10 V peak) |
| Sampling Rate | 256 samples/cycle at 50/60 Hz |
| LED Indicators | 11 Bi-color LED: 4 x Voltage clips status 4 x Current clamps status 1 x SD card status 1 x PQZ Recording status 1 x General status |
| Accuracy Standard | IEC 61000-4-30 Class A Edition 3 |
| Power | |
| Power Supply | 100 to 240 V AC 50/60Hz 10W 140 to 300 V DC 5 V DC over USB |
| Ride Through | 30 seconds |
| Synchronization | |
| Internal Synchronization | 10 ppm |
| External Synchronization | NTP available with an extension module |
| Environmental Conditions | |
| Operating Temperature | -20 to 70°C |
| Humidity | 5 to 95%, non-condensing |
| IP Protection | IP40 |
| Storage | |
| Nonvolatile Memory | SD Card supporting |
| Battery | 5 hours with an extension module |
| General Specifications | |
| Dimensions | 7 x 4.5 x 2.36" (18 x 11.5 x 6 cm) |
| Weight | 0.88 lbs (0.4 kg) |
Click on a category to view a selection of compatible accessories with the Elspec SPG-531A-0090-1 PureBB 3-Phase Plug & Play Power Quality Analyzer Kit.
