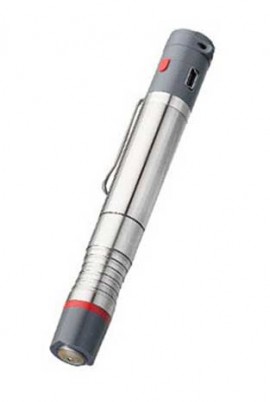

With its small sizing, you can carry this intelligent wireless sensor anywhere. It relays sensor data via Bluetooth to your tablet, smart phone or the MiniTest 745 coating thickness gauge. You can connect any SIDSP sensor to SmarTest and cover a wide range of coating thickness measurement tasks. This configuration includes an FN2.6 sensor for ferrous and non-ferrous materials.
With its small sizing, you can carry this intelligent wireless sensor anywhere. It relays sensor data via Bluetooth to your tablet, smart phone or the MiniTest 745 coating thickness gauge. You can connect any SIDSP sensor to SmarTest and cover a wide range of coating thickness measurement tasks. This configuration includes an FN2.6 sensor for ferrous and non-ferrous materials.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Applications
| Measuring Range | F: 0 ... 2.6 mm / 0 ... 102 mils N: 0 ... 1.3 mm / 0 ... 51 mils |
Measuring Method | Eddy Current | Accuracy | ± (1 µm + 0.75% of reading) ± (0.04 mils + 0.75% of reading) |
Repeatability | ± (0.5 µm + 0.5% of reading) ± (0.02 mils + 0.5% of reading) |
Low Range Resolution | 0.05 µm / 0.002 mils |
| Minimum Curvature Radius | convex: 1.5 mm / 59 mils concave: 7.5 mm / 295 mils |
| Minimum Measuring Area | Ø 5 mm / 197 mils |
| Operating Temperature | 14 to 140 °F (-10 to 60 °C) |
| Storing Temperature | -4 to 158 °F (-20 to 70 °C) |
| Power Supply | LiFePO4 battery operating time approx. 8 hours continuous operation |
| Dimensions | 125 mm x ø 16 mm / 4.9" x ø 0.63"F |
| Weight | 48 g / 1.7 oz |
