"Our job is helping you do your job"

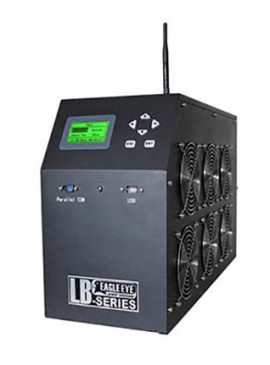

These smart DC load banks are designed for battery capacity testing, discharge testing, battery maintenance and other testing with DC power with a load. These SLB series are easy-to-use, portable and economic. Eagle Eye load banks are designed specifically to make discharge testing easy for any application.
These smart DC load banks are designed for battery capacity testing, discharge testing, battery maintenance and other testing with DC power with a load. These SLB series are easy-to-use, portable and economic. Eagle Eye load banks are designed specifically to make discharge testing easy for any application.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Features
Applications
| Cell Voltage | Standard DAC: 1.2V1, 2V, 6V, 12V / Optional: Custom DAC configurations available upon request |
| Discharge Current Range | Single Load: 12 – 600A / Parallel Load: Up to 1200A |
| Discharge Voltage Range | Range: 10 – 576V (Max) / Voltage Steps: 12V, 24V, 36V, 48V, 80V, 125V, 240V, 380V, 480V |
| Accuracy | Discharge Current: 1% / Voltage: 0.5% – 0.8% |
| Resolution | 5 seconds – 1 minute |
| Data Transfer | USB, Wireless (466 MHz) |
| Display | Backlit LCD |
| Operating Environment | Backlit LCD |
| Dimensions | Small: 400 x 177 x 288 mm (15.7 x 7 x 11.3 in), Medium: 520 x 202 x 355 mm (20.5 x 8 x 14 in), Large: 555 x 225 x 435 mm (22.5 x 8.9 x 17.2 in), X-Large: 603 x 400 x 740 mm (23.7 x 15.7 x 29 in), XX-Large: 762 x 406 x 737 mm (30 x 16 x 29 in) |
| Weight | Small: 11 kg (24 lbs) Medium: 16 kg (36 lbs) Large: 21kg (47 lbs) X-Large: 42 kg (93 lbs) XX-Large: 55 kg (122lbs) |
| Safety Standard | CE Marked, EMC Standard |
| Cell Voltage | Standard DAC: 1.2V1, 2V, 6V, 12V / Optional: Custom DAC configurations available upon request |
| Discharge Current Range | Single Load: 12 – 600A / Parallel Load: Up to 1200A |
| Discharge Voltage Range | Range: 10 – 576V (Max) / Voltage Steps: 12V, 24V, 36V, 48V, 80V, 125V, 240V, 380V, 480V |
| Accuracy | Discharge Current: 1% / Voltage: 0.5% – 0.8% |
| Resolution | 5 seconds – 1 minute |
| Data Transfer | USB, Wireless (466 MHz) |
| Display | Backlit LCD |
| Operating Environment | Backlit LCD |
| Dimensions | Small: 400 x 177 x 288 mm (15.7 x 7 x 11.3 in), Medium: 520 x 202 x 355 mm (20.5 x 8 x 14 in), Large: 555 x 225 x 435 mm (22.5 x 8.9 x 17.2 in), X-Large: 603 x 400 x 740 mm (23.7 x 15.7 x 29 in), XX-Large: 762 x 406 x 737 mm (30 x 16 x 29 in) |
| Weight | Small: 11 kg (24 lbs) Medium: 16 kg (36 lbs) Large: 21kg (47 lbs) X-Large: 42 kg (93 lbs) XX-Large: 55 kg (122lbs) |
| Safety Standard | CE Marked, EMC Standard |
