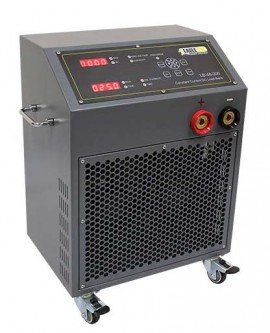

Eagle Eye LB-48-200-CC Constant Current Load Bank, 48V, 200A

Model: LB-48-200-CC

Eagle Eye LB-48-200-CC Constant Current Load Bank, 48V, 200A-

Downloads: datasheet

More Eagle Eye Products

Ask an Expert

Eagle Eye LB-48-200-CC Constant Current Load Bank, 48V, 200A

Model: LB-48-200-CC

Designed for discharge testing, battery capacity testing, acceptance testing, battery maintenance, engineer testing and any other testing for DC power with load. This unit is portable, easy-to-use, durable and safe.

Designed for discharge testing, battery capacity testing, acceptance testing, battery maintenance, engineer testing and any other testing for DC power with load. This unit is portable, easy-to-use, durable and safe.

This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping. We will contact you with your shipping costs.This product is a special order item which can’t be returned or cancelled.

Sale Price $4467.76 USD
Regular Price $4950.42 USD
Availability 15+ Weeks
Quantity

Eagle Eye LB-48-200-CC Offers

Features

  • Maximum discharge current of 200A at 48VDC
  • Portable, economic, reliable and user-friendly
  • Intelligent technology allows a constant current discharge without the need for any adjustments during the test
  • Current output and cutoff parameters are both view-able and adjustable at any time during discharge testing
  • LED display for voltage, current, and test duration
  • Three test conditions for discharge auto-stop: Test Time, End Voltage, and Exceeded Capacity
  • Unit will alarm and end discharge in the event of overheating, abnormal disconnection of battery, and improper polarity detected
  • Cooling fans continue to run automatically after each test to ensure maximum heat protection
  • Previously used parameters saved after powering off the machine
  • One-year standard warranty

Applications

  • Discharge Testing
  • Battery Capacity Testing
  • Acceptance Testing
  • Battery Maintenance

Eagle Eye LB-48-200-CC Specifications

Maximum Discharge Current 200A at 48VDC
Voltage Range 5 to 600V (Auto-Sensing)
Current Range 1 to 2000A
Per Cell Voltage Type 1 to 12V VRLA, VLA, NiCad, and more
Accuracy Current: 0.1A
Voltage: 0.1V
Resolution Current: ±0.2A
Voltage: ±0.3%V
Data Transfer RS-232, USB
Display Backlit numeric LED
Operating Environment 32 to 104°F (0 to 40°C)
Power Requirements 110/220 VAC 50/60 Hz
Click here for complete specifications on the Eagle Eye LB-48-200-CC

What's included with the Eagle Eye LB-48-200-CC

  • Constant Current Load Bank
  • 3 m (10 ft) Discharge Cables
  • 110/220 AC Power Cable
  • USB with Support Literature
  • 1-Year Standard Warranty
datasheet for the Eagle Eye LB-48-200-CC Constant Current Load Bank, 48V, 200A

Eagle Eye LB-48-200-CC Offers

Features

  • Maximum discharge current of 200A at 48VDC
  • Portable, economic, reliable and user-friendly
  • Intelligent technology allows a constant current discharge without the need for any adjustments during the test
  • Current output and cutoff parameters are both view-able and adjustable at any time during discharge testing
  • LED display for voltage, current, and test duration
  • Three test conditions for discharge auto-stop: Test Time, End Voltage, and Exceeded Capacity
  • Unit will alarm and end discharge in the event of overheating, abnormal disconnection of battery, and improper polarity detected
  • Cooling fans continue to run automatically after each test to ensure maximum heat protection
  • Previously used parameters saved after powering off the machine
  • One-year standard warranty

Applications

  • Discharge Testing
  • Battery Capacity Testing
  • Acceptance Testing
  • Battery Maintenance
Show More...

Eagle Eye LB-48-200-CC Specifications

Maximum Discharge Current 200A at 48VDC
Voltage Range 5 to 600V (Auto-Sensing)
Current Range 1 to 2000A
Per Cell Voltage Type 1 to 12V VRLA, VLA, NiCad, and more
Accuracy Current: 0.1A
Voltage: 0.1V
Resolution Current: ±0.2A
Voltage: ±0.3%V
Data Transfer RS-232, USB
Display Backlit numeric LED
Operating Environment 32 to 104°F (0 to 40°C)
Power Requirements 110/220 VAC 50/60 Hz
Click here for complete specifications on the Eagle Eye LB-48-200-CC

What's included with the Eagle Eye LB-48-200-CC

  • Constant Current Load Bank
  • 3 m (10 ft) Discharge Cables
  • 110/220 AC Power Cable
  • USB with Support Literature
  • 1-Year Standard Warranty
datasheet for the Eagle Eye LB-48-200-CC Constant Current Load Bank, 48V, 200A
